DRS-832 Hydraulic Shearing Machine (Swing Beam Type)

Share to:

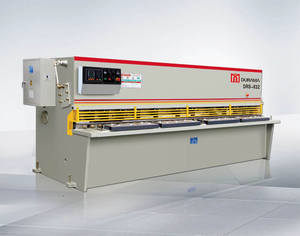

DRS-832 Hydraulic Shearing Machine (Swing Beam Type)

DURAMA Hydraulic shearing machine DRS-832, suitable for cutting maximum 8mm thickness mild steel, 3200mm width.

Availability:

Quantity:



Inquire Add to Basket

Model:
DRS-832
Brand:
DURAMA
Code:
84623990

Product Description

Hydraulic Shearing Machine

● Steel plate welded structure,hydraulic transmission and accumulator return strock.

● Easy operation,reliable performance and fine appearance.

● Indicator based gap adjustment of blades, fast and convenient.

● Shadow light alignment.

● Top blade could be adjusted for full stroke or shorter ones.

● With high quality blades suitable for cutting stainless steel.

● Fence guard for personnel safety.

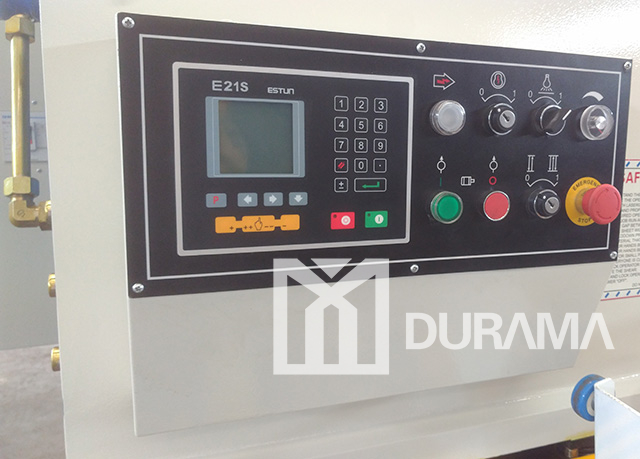

● With ESTUN E21S NC controller, it can control backgauge, get high efficience and precise positioning.

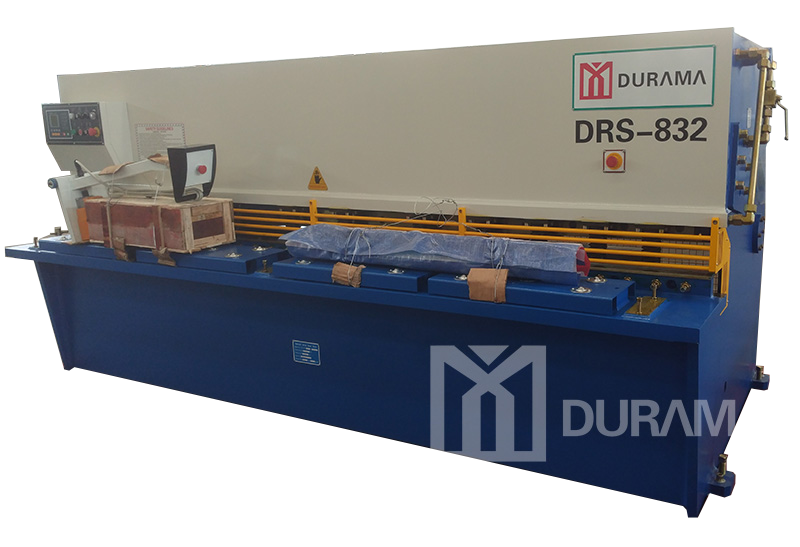

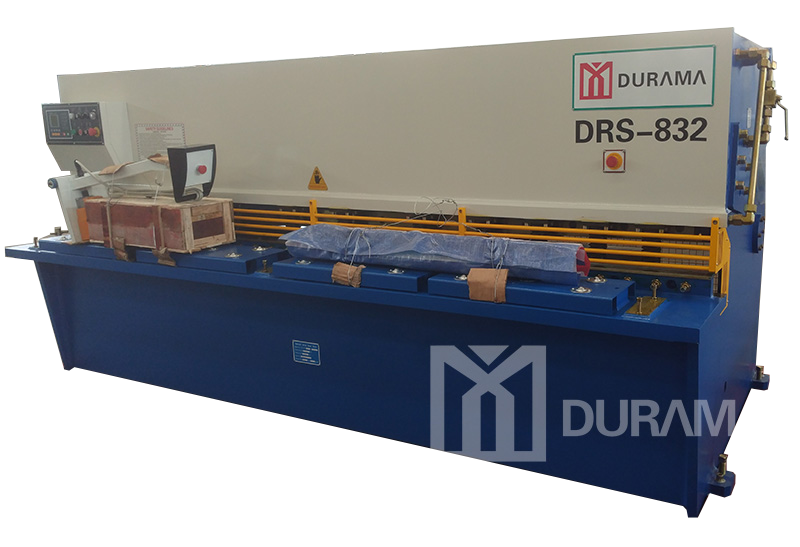

P1 DRS-832 Shearing Machine

Maximum plate thickness	8	mm
Maximum plate width	3200	mm
Strength of sheared plate	500	Mpa
Shearing angle	1°30′
Number of strokes	＞17	mim-1
Distance between vertical posts	3420	mm
Length of cutter blade	3300	mm
Worktable height	800	mm
