DRGS-840
DURAMA
84623990
Model:

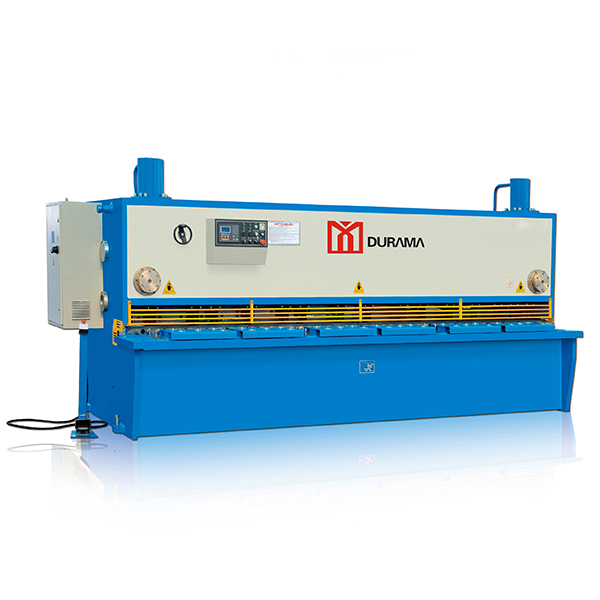

DRGS-840 (Max cutting thickness 8mm, cutting width 4000mm)
Hydraulic gate shears are mainly used to cut sheet metal to obtain the required size of raw materials, which is convenient for the following process of bending, stamping and forming.

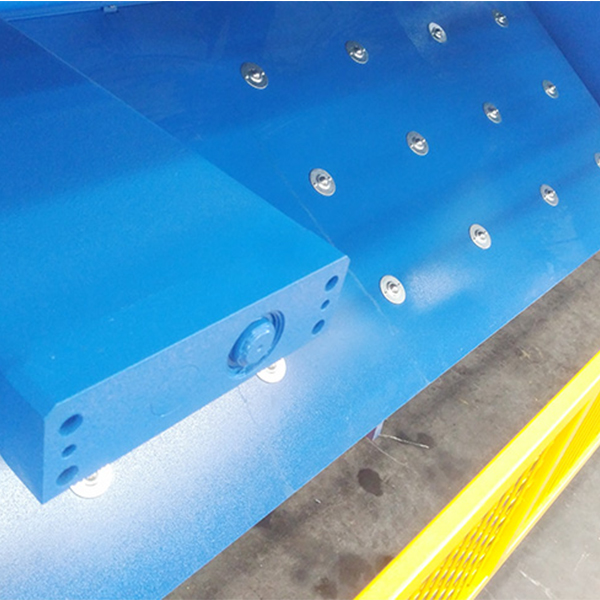

Hydraulic scissors gate model DRGS-840 (QC11Y-8X4000), adopts steel plate welded structure, through vibration aging to eliminate stress, has good rigidity and stability; Adopts three-point support rolling guide, eliminating support gap, improve the quality of scissors; The angle of the scissors can be adjusted, reducing the distortion of the material distortion sheet; Rectangular blade, four edges can be used, long service life. Spherical table can reduce the contact between the sheet and the table, reduce the work intensity.
Title | Parametric | Unit |
Maximum shear thickness | 8 | mm |
Maximum shear width | 4000 | mm |
Yield strength of steel sheet | 450 | Mpa |
Shear angle | 0.5-2° | |
Number of moves | ＞5 | mim-1 |
Distance between columns | 4260 | mm |
Blade length | 4100 | mm |
Table height | 850 | mm |
Overall dimensions | 4620X2120X2370 | mm |
Machine weight | 7600 | kg |
