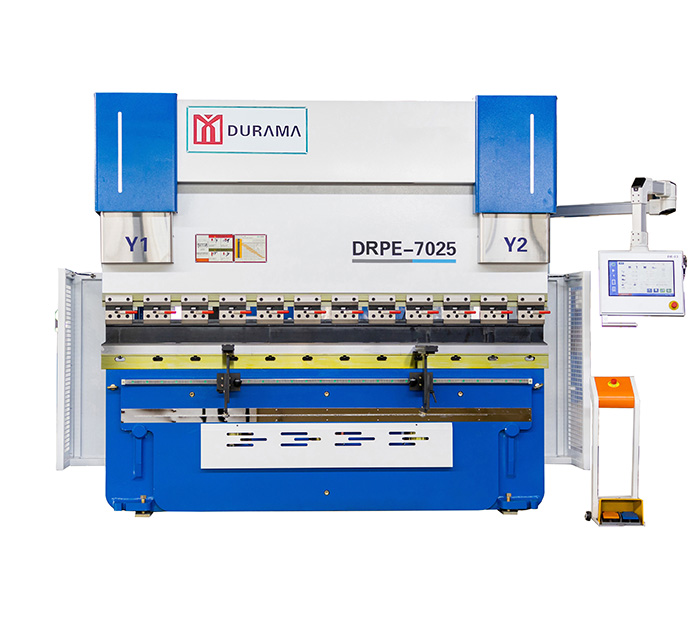

DRPE-7025
DURAMA
84622190
DRPE-11032 Hydro-Electric CNC Press Brake with DE-15 CNC
The model of this synchro hydraulic cnc press brake / bending machine is DREP-series,with DE-15 CNC together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance.
Basic features for DE-15 synchro cnc press brake
• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
•DE-15 CNC together with linear encoder, Rexroth valves,servo motors and other famous brand elements to ensure excellent performance
• Quick clamps is for easy operation of removing and changing upper punch tools
• Nylon material is used for front support to avoid scractch of sheets and improve the bending process
• Ram stroke (Y1,Y2) and backgauge (X,R,Z) are controlled by CNC

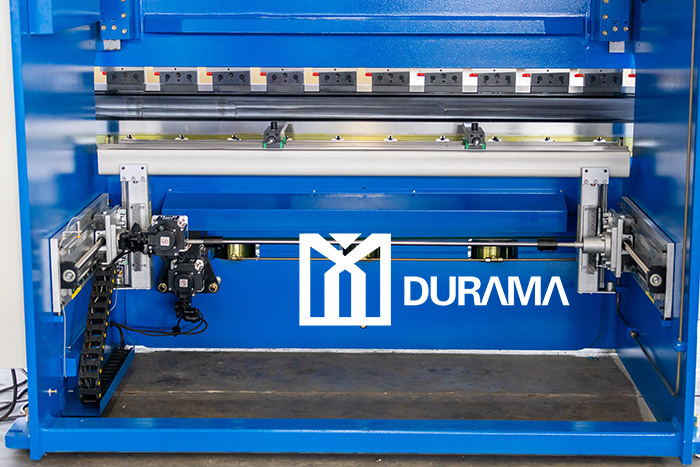

• Backgauge installed with ball screw and linear guide rail,ensuring high accuracy of repetition
• Stop fingers is sliding on linear rail for easy adjustment and high efficiency
• Multi-axis CNC controlled synchronous press brake available as metal sheet fabricating center
Optional elements for delem DE-15 synchro cnc press brake
• Laser curtain of FIESSLER brand/ Laser curtain of LNTECH brand for personal safety, especially to protect the fingers
•Customized specially tools for users' individual production
Main Technical Data for DRPE-70:
Model | DRPE-7025 | unit |
Normal pressure | 700 | KN |
Table length | 2500 | mm |
Column space | 2050 | mm |
Throat depth | 250 | mm |
Slider stroke | 100 | mm |
Slider stroke regulation amount | 75 | mm |
Max open height between table and slider | 335 | mm |
worktable height above the ground | 850 | mm |
Max work pressure of hydraulic system | 16 | Mpa |
Dimension | 2800 X 1400 X 2230 | mm |
Weight | 4600 | KGS |
DRPE-11032 Hydro-Electric CNC Press Brake with DE-15 CNC
The model of this synchro hydraulic cnc press brake / bending machine is DREP-series,with DE-15 CNC together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance.
Basic features for DE-15 synchro cnc press brake
• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
•DE-15 CNC together with linear encoder, Rexroth valves,servo motors and other famous brand elements to ensure excellent performance
• Quick clamps is for easy operation of removing and changing upper punch tools
• Nylon material is used for front support to avoid scractch of sheets and improve the bending process
• Ram stroke (Y1,Y2) and backgauge (X,R,Z) are controlled by CNC
• Backgauge installed with ball screw and linear guide rail,ensuring high accuracy of repetition
• Stop fingers is sliding on linear rail for easy adjustment and high efficiency
• Multi-axis CNC controlled synchronous press brake available as metal sheet fabricating center
Optional elements for delem DE-15 synchro cnc press brake
• Laser curtain of FIESSLER brand/ Laser curtain of LNTECH brand for personal safety, especially to protect the fingers
•Customized specially tools for users' individual production
Main Technical Data for DRPE-70:
Model | DRPE-7025 | unit |
Normal pressure | 700 | KN |
Table length | 2500 | mm |
Column space | 2050 | mm |
Throat depth | 250 | mm |
Slider stroke | 100 | mm |
Slider stroke regulation amount | 75 | mm |
Max open height between table and slider | 335 | mm |
worktable height above the ground | 850 | mm |
Max work pressure of hydraulic system | 16 | Mpa |
Dimension | 2800 X 1400 X 2230 | mm |
Weight | 4600 | KGS |
