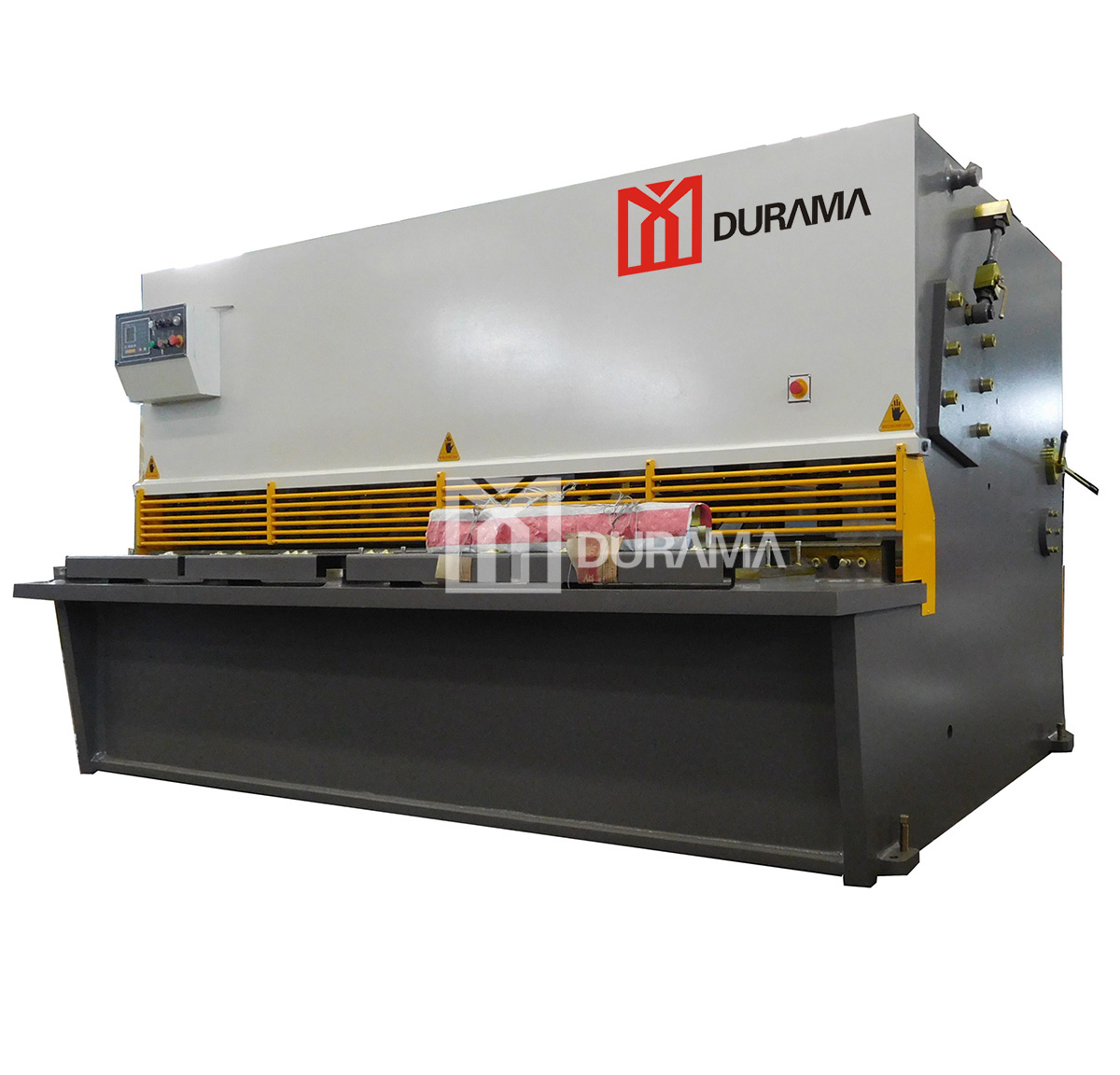

DURAMA Hydraulic Guillotine DRS-1232, suitable for cutting maximum 12mm thickness mild steel or 6mm stainless steel, 3200mm width.
Hydraulic Shearing Machine
● Steel plate welded structure,hydraulic transmission and accumulator return strock.
● Easy operation,reliable performance and fine appearance.
● Indicator based gap adjustment of blades, fast and convenient.
● Shadow light alignment.
● Top blade could be adjusted for full stroke or shorter ones.
● With high quality blades suitable for cutting stainless steel.
● Fence guard for personnel safety.
● With ESTUN E21S NC controller, it can control backgauge, get high efficience and precise positioning.
Maximum plate thickness | 12 | mm |
Maximum plate width | 3200 | mm |
Strength of sheared plate | 500 | Mpa |
Shearing angle | 1°30′ | |
Number of strokes | ＞17 | mim-1 |
Distance between vertical posts | 3430 | mm |
Length of cutter blade | 3300 | mm |
Worktable height | 800 | mm |
