DRPK-16032
DURAMA
84622990
DRPK-16032 Hydraulic CNC Bending Machine with TP10S CNC, with fast clamping, servomotors, linear guideway, ball screws...... It is with 110Ton power pressure, and 3200mm width bending capacity.
●Main Specification:
| Model | DRPK-16032 |
| Power press | 1600KN |
| Bending length | 3200mm |
| Weight | 9800KGS |
| Dimensions | 3500X1500X 2400mm |
1. Steel-welded construction, vibration to eliminate stress with high strength and good rigidity;
2. Italy ATOS valves or American OMG vales optional;
3. Electric components SIEMENS optional;
4. DZ-UN from Taiwan or Japan NOK sealings for hydraulic system;
5 Hydraulic top-drive, steadiness and reliability;
6 Electrical hydraulic synchronization, high precision;
7 Deflection compensation unit installed on the top die;

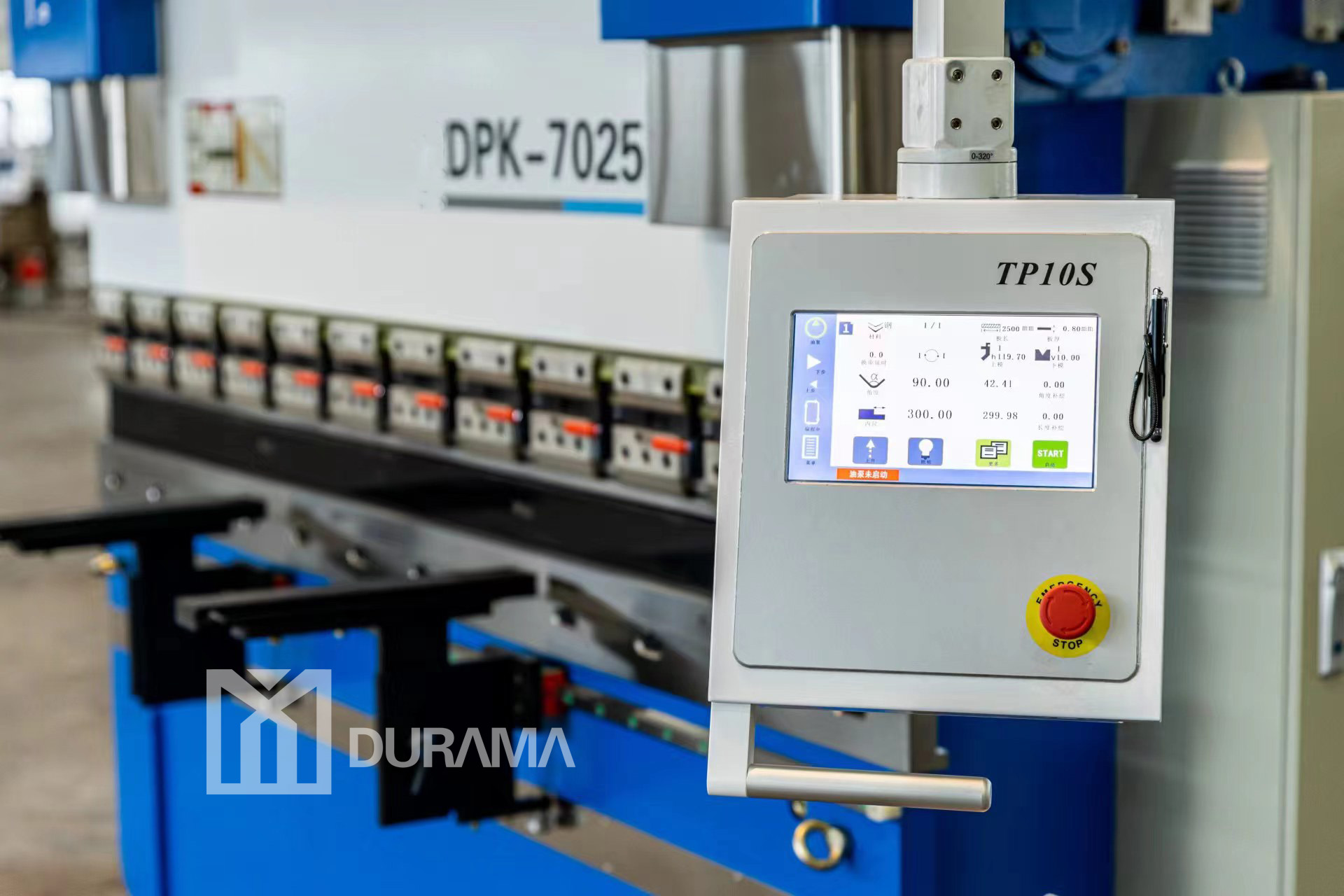

8 Machine equipped with TP10S CNC.
9 With servomotor, ball screws.
10 With linear guideway, nylon adjustable front support arm.
11 Emergency buttons for back and side control cabinet, also food pedal;
12 Standard top tool & bottom die supplied with the machine;
13 Special tools are optional, will be designed according to your needs.
Key Words: CNC press brake, folding machine, bending machine, plate bender, plate folder, steel bending machine, plegadora, dobladora, SS folding machine, mild steel folding machine, steel folder...
