DRP-12532
DURAMA
84622990

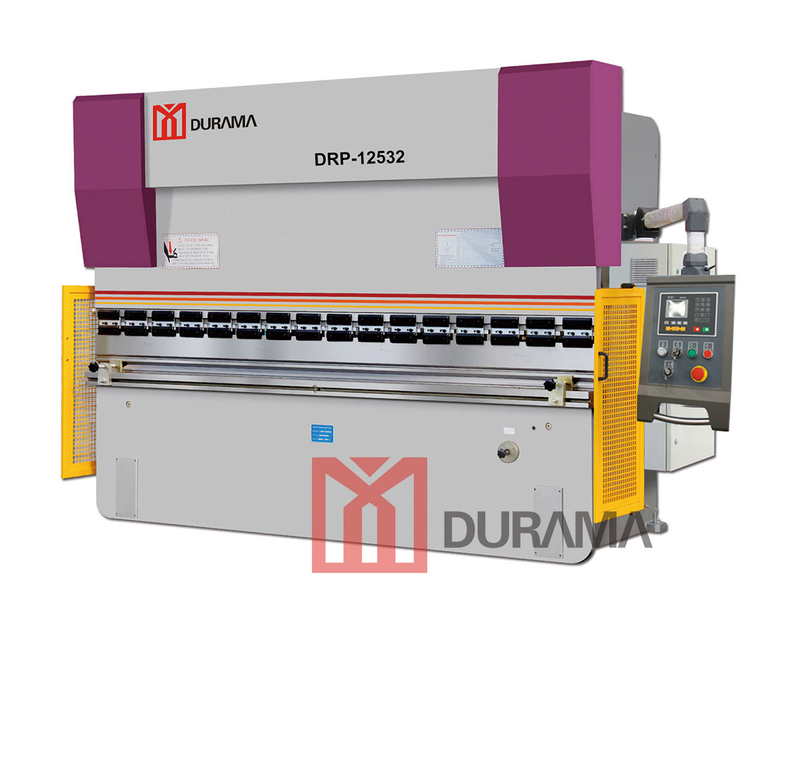

DURAMA DRP-12532 Hydraulic Folding Machine with ESTUN E21 NC, hydraulic press brake DRP-12532 (WC67Y-125/3200), is equipped with ESTUN E21 NC controller, it can control backgauge X, achieving precise positioning efficiently; it can also controle cylinder stroke Y.
Hydraulic top-drive, steadiness and reliability;
Electrical hydraulic synchronization, high precision;
Deflection compensation unit installed on the top die;
Machine fitted with digital readout.

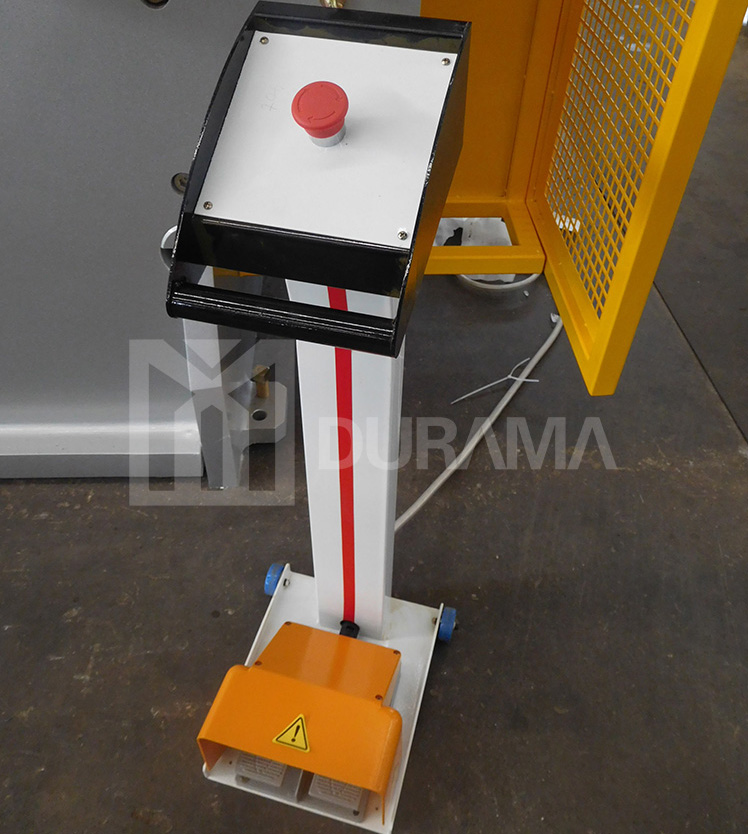

Emergency buttons for back and side control cabinet, also food pedal;
Standard top tool & bottom die supplied with the machine;
Special tools are optional, will be designed according to your needs.
1 | Normal pressure | 1250 | KN |
2 | Table length | 3200 | mm |
3 | Column space | 2650 | |
4 | Throat depth | 320 | |
5 | Slider stroke | 140 | |
6 | Slider stroke regulation amount | 100 | |
7 | Max open height between table and slider | 385 | |
8 | worktable height above the ground | 800 | |
9 | Max work pressure of hydraulic system | 25 | Mpa |
