DRPK-7025
DURAMA
84622990

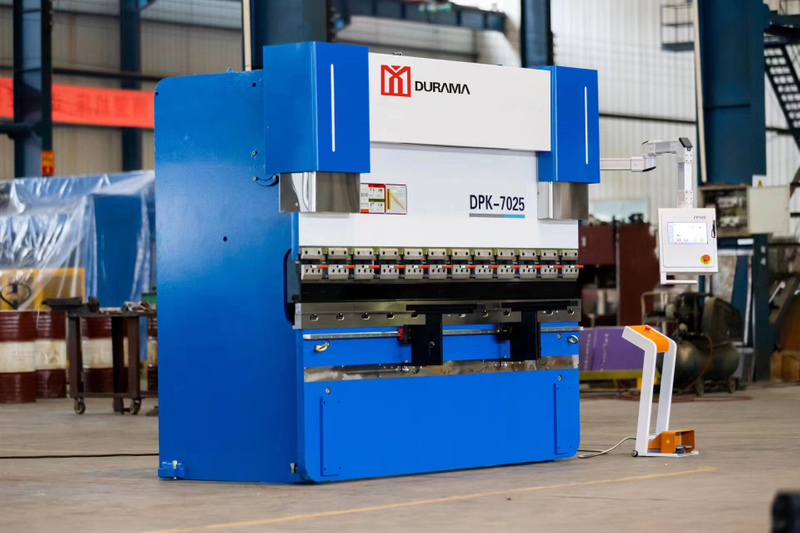

DRPK-7025 Hydraulic CNC Press Brake with TP10S CNC, with fast clamping, servomotors, linear guideway, ball screws...... It is with 70Ton power pressure, and 2500mm width bending capacity.
● Strong rigid torsion bar design,ensuring the synchronous movement of ram stroke.
● Built-in mechanical stop,ensuring an accurate positioning of ram stroke.
● X axis controlled by servo motor,with strong synchronous belt, high control accuracy, fast positioning and low noise.
● The backgauge installed with ball screw and linear guideway,with high repetition accuracy and low maintenance.
● Vertial movable stop fingers, which can slide on linear rail and also go up or down if needed, adapt to different moulds.
● With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.
● With stable and durable France Schneider electrics.
● With double front plate holder,can move horizontal and adjust vertical height.
● With imported hydraulic system, stable and precise during persistent working.
| Model | DRPK-7025 |
| Power press | 700KN |
| Bending length | 2500mm |
| Weight | 3200KGS |
| Dimensions | 2800X1300X 2200mm |
1. Steel-welded construction, vibration to eliminate stress with high strength and good rigidity;
2. Italy ATOS valves or American OMG vales optional;
3. Electric components SIEMENS optional;
4. DZ-UN from Taiwan or Japan NOK sealings for hydraulic system;
5 Hydraulic top-drive, steadiness and reliability;
6 Electrical hydraulic synchronization, high precision;
7 Deflection compensation unit installed on the top die;
8 Machine equipped with TP10S CNC.
9 With servomotor, ball screws.
10 With linear guideway, nylon adjustable front support arm.
11 Emergency buttons for back and side control cabinet, also food pedal;
12 Standard top tool & bottom die supplied with the machine;
13 Special tools are optional, will be designed according to your needs.
Key Words: CNC press brake, folding machine, bending machine, plate bender, plate folder, steel bending machine, plegadora, dobladora, SS folding machine, mild steel folding machine, steel folder...
