Q46Y-60 Hydraulic Punching Machine

Q46Y-90 Hydraulic Punching Machine, Universal punching machine, with 90Ton power pressure, functions for cutting sheet or channels, bending, punching holes, etc..
Availability:
Quantity:
  • Q46Y-60

  • DURAMA

  • 84623990

DURAMA DRQ46Y series hydraulic punching machines are designed with multiple functions, including punching, cutting and bending It is able to punch round hole, square hole, oval hole etc; Q46Y-60 Hydraulic Punching Machine, hydraulic press, hole punching.

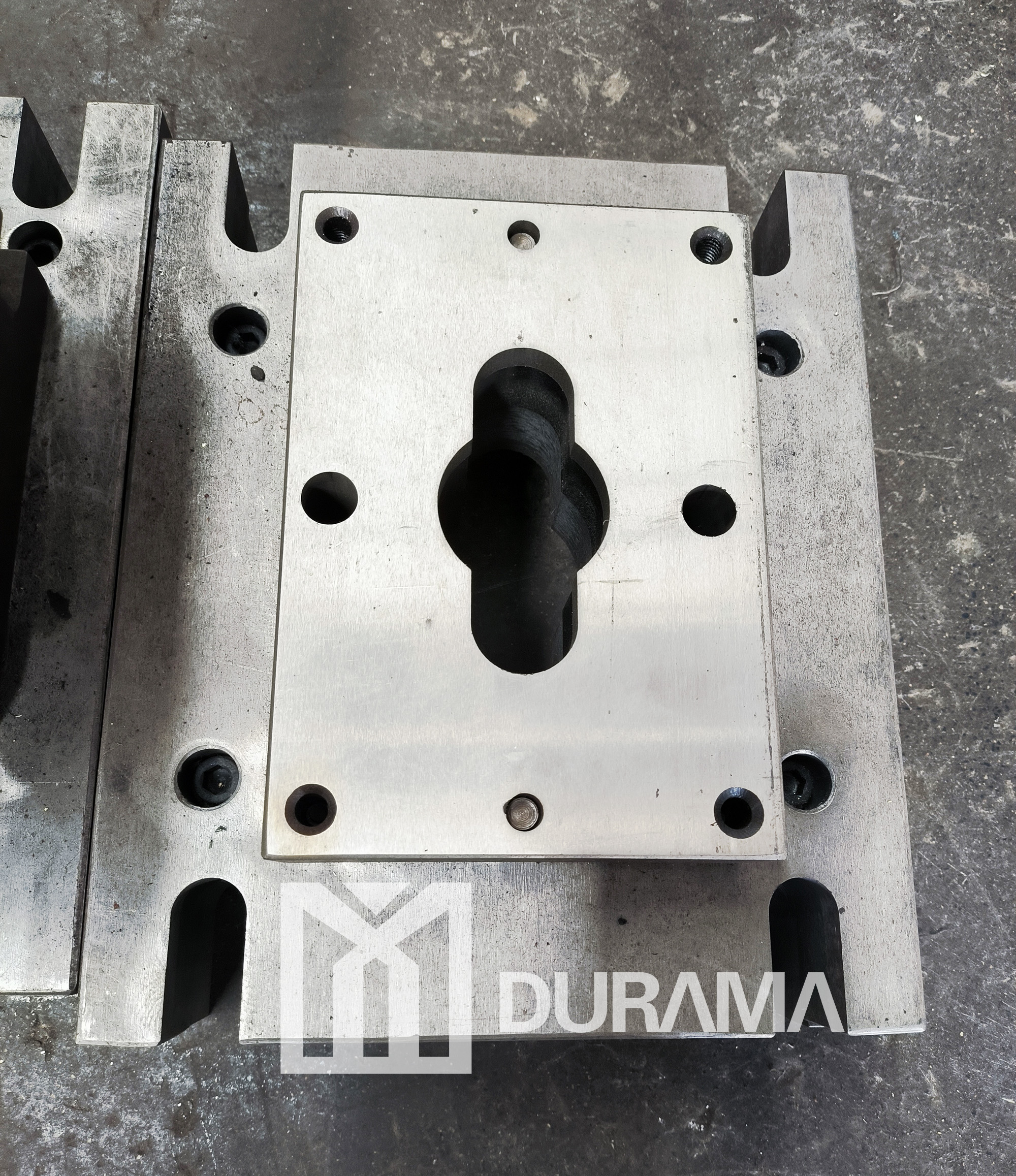

P5 Hydraulic Punching Machine
The machine comes standard with:
 quick released coupling nut & sleeve, scaled squaring arm, electronic back gauge, gauging table with stops, punching base table, safety guards and more.

Automatic Holding System:
The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. The holders will fix the position of work piece, in this way, the accuracy is better and more safety for workers meanwhile save time and improve working efficiency.

Temperature cooling system:
When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.


Main standard properties components of Ironworker:

1. All the electrical parts are with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Steel frame Q235 = American standard steel A306 GR55.
5. Five sets of tools, including punching and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by France Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Double independent hydraulic cylinders
13. Double Foot pedal controlled work separately
14. Indicator on both hydraulic cylinders
15. Large notching table with Ruler guide
16. Large flat shearing table with Ruler guide
17. Large punching table with ruler guide
18. Easy Adjustable stroke control with ruler
19. Electric back gauge with auto stop
20. Movable working light for placing at any desired position
21. Hydraulic system with overload protection system
22. Emergency safety stop switch
23. Most important with easy maintenance
