SDL-5U-1250
DURAMA
84624900

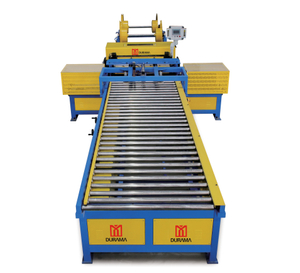

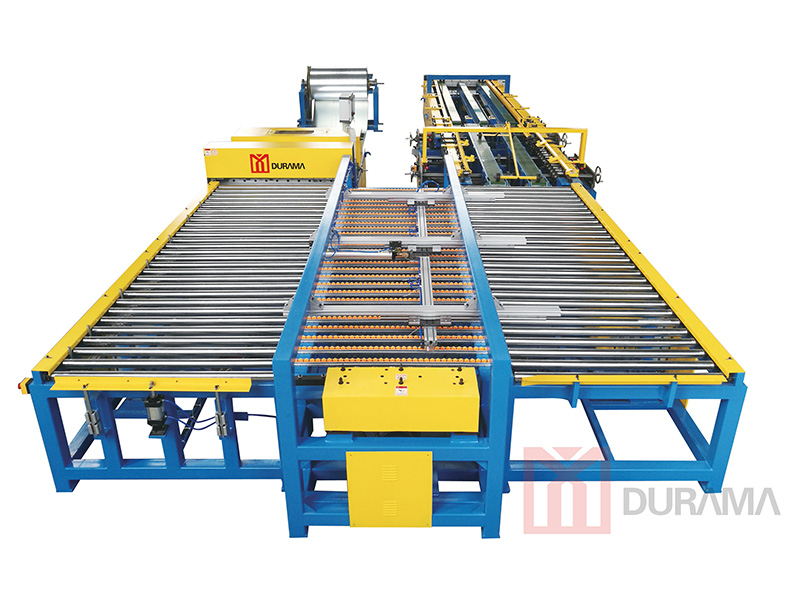

DL-5U-1250 Advanced U-Shape Duct Line 5, HAVC duct line, air duct machine, fully automatic to make square air duct
1.Main Technical data for SDL-5U-1250/1500:
1) Material : standard mild steel, galvanized steel
2) Plate thickness : 0.5-1.2mm
3) Coil width : 1250 / 1500mm
4) Coil weight : ≤ 7 tons
5) Coil diameter: 500-600mm (optional 500 / 600mm tray)
6) Coil diameter : ≤ φ1100mm
7) Feeding speed : ≤ 15 m / min
8) The longest single piece length : 4000mm
9) The shortest single piece length : 700mm
10) Sheet length tolerance : ± 0.5mm
11) Wind pipe bending tolerance : ± 3mm
12) Pressing : the standard "V" type (pitch: 210mm)
13) Control system : PLC automatic numerical control system
14) Main power supply : 380V / 50HZ / 3 phase
15) Hydraulic pressure : 7-10MPa (maximum 14MPa)
16) Pneumatic pressure : 0.6-0.8MPa
17) Production line running : straight line
18) Overall length : 24000mm
19) Width : 3500 / 4000mm (max)
20) The total power : 30KW
21) The total weight : 13/14 tons
