| Quantity: | |
|---|---|
SADL-3
DURAMA
8462
1.Machine structure:

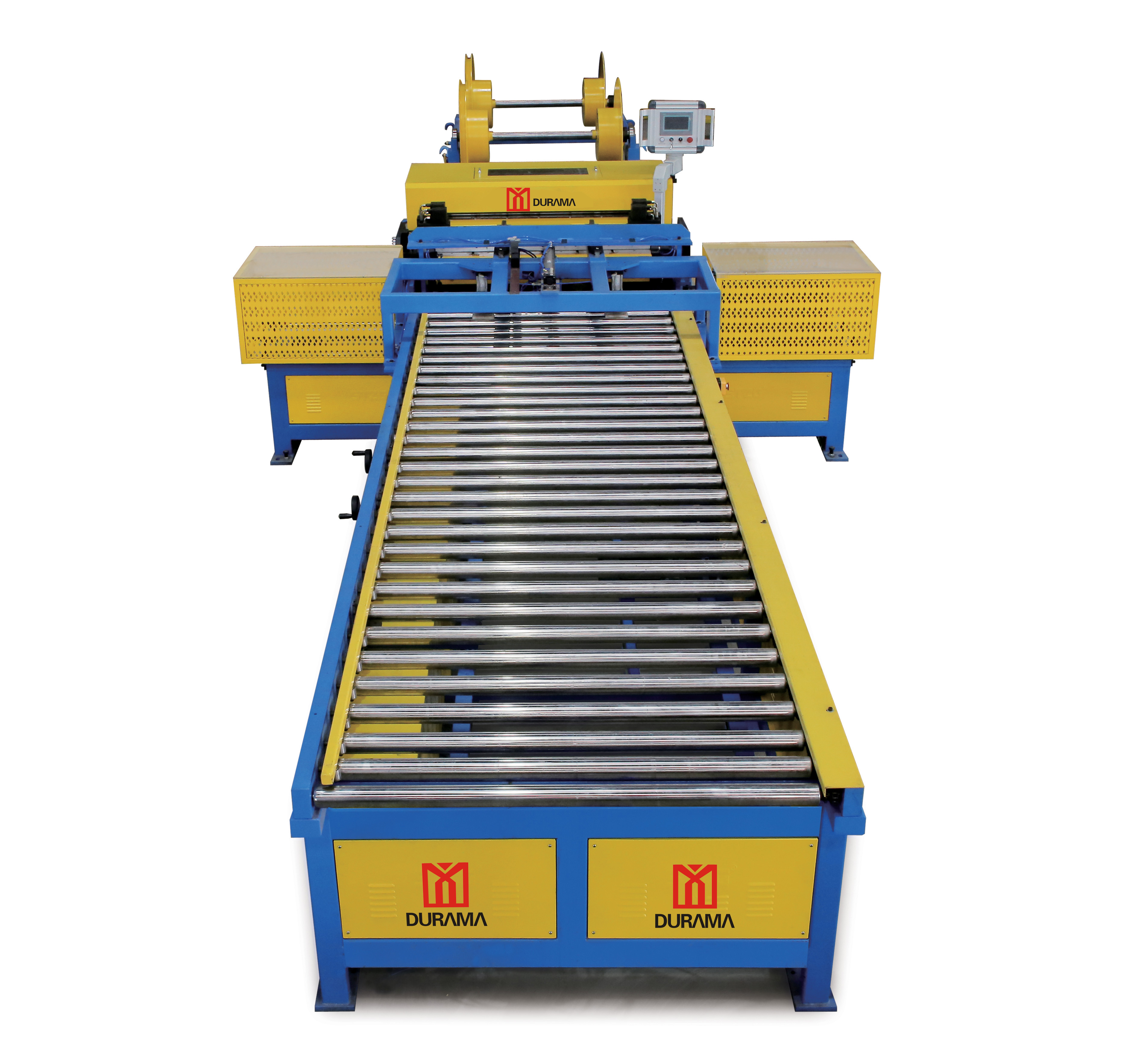

The automatic production line of duct SADL-3 is composed of material plate, positioning device, leveling, pressing, cutting and bending.
2.Scope of Application:
The quality standards of the ducts produced by the wind pipe automatic production line are reliable and can be used for material feeding production under TDC and TDF conditions as well as for plate material feeding production.
3. Equipment Advantages:

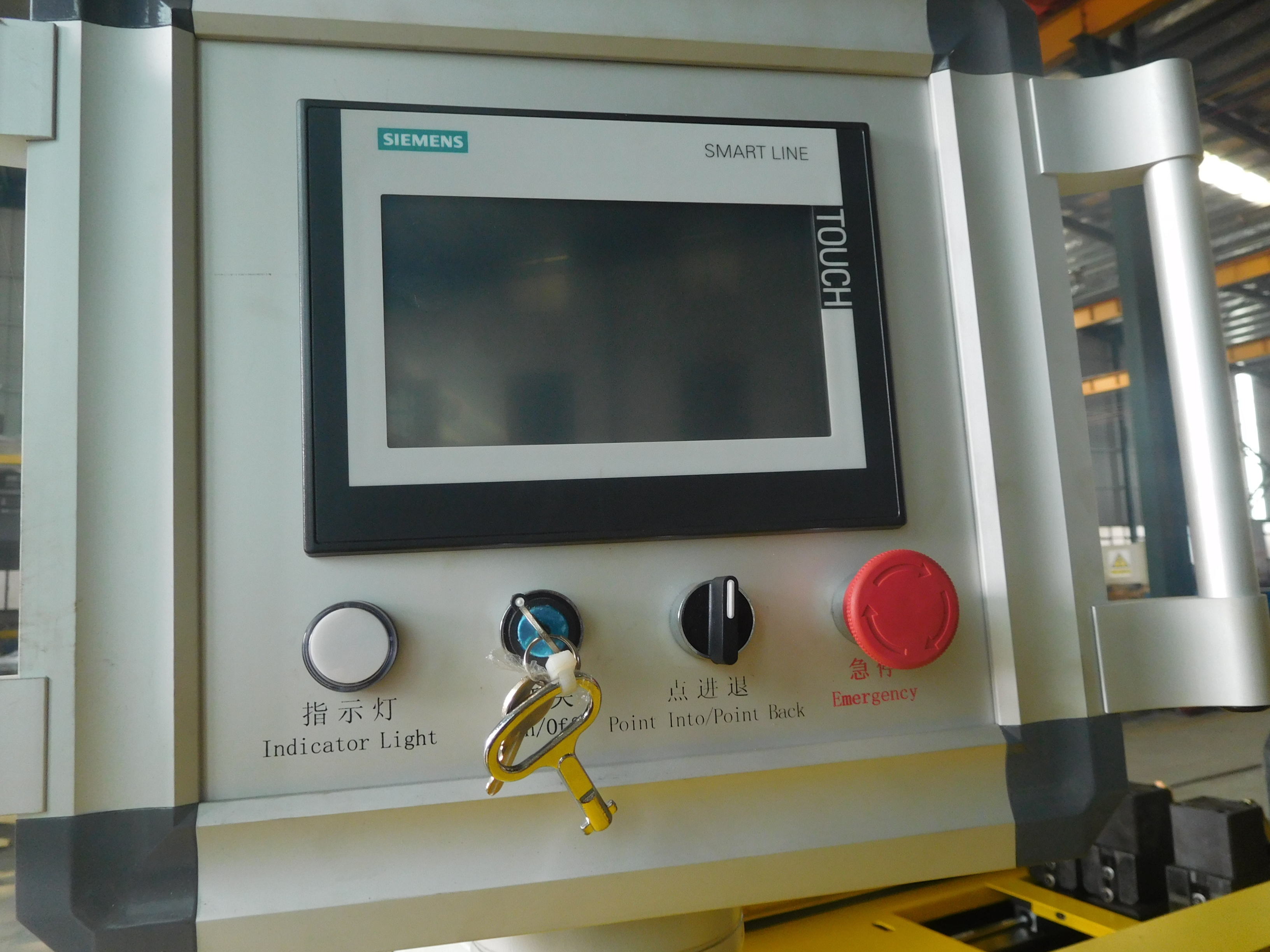

The Durama wind pipe automatic production line has undergone detailed research in its design ensuring smoother duct manufacturing; the Durama wind pipe production line adopts advanced numerical control and hydraulic control systems which ensures stable operation of the entire system and improves processing accuracy.
4. Equipment parameters:
Board thickness | 0. 6~1.2mm |
Maximum processing speed | 15m/min |
The processing board width is | 1250mm |
governing error | Length error: ±0.5mm/m; Diagonal error: ±0.8mm/m |
Each material shelf carries the weight | No more than 7 tons |
