DR3-1.2X1250
DURAMA
8462

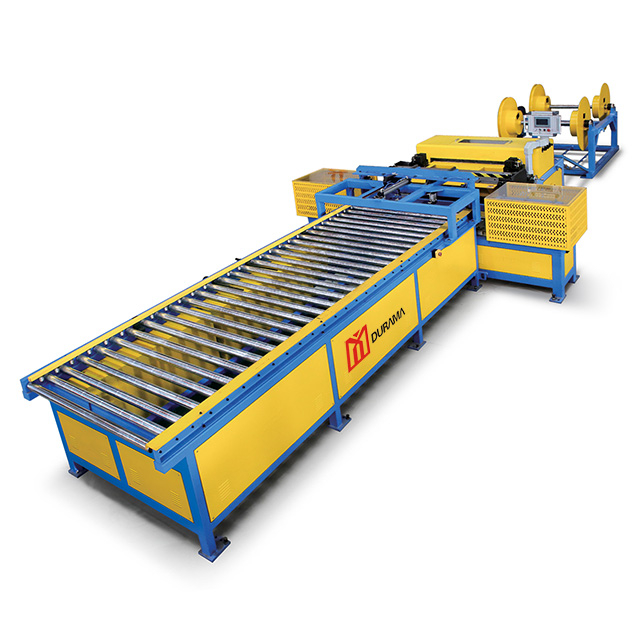

DURAMA Auto Duct Line 3, HVAC air duct line 3, square air conditioning duct machine
Model No. | Max Coil Width | Thickness Range | Power | Speed | Dimension | Weight | Diagonal Tolerance |
DR3-1.2x1250 | 1300mm | 0.4-1.2mm | 10 | 0-15m/min | 2.8*1.8*1.3m | 4ton | ±0.5mm |
DR3-1.2x1500 | 1500mm | 0.4-1.2mm | 11 | 0-15m/min | 2.8*2*1.3m | 5ton | ±0.5mm |
1)Technical sheets:
2)Standard Features:
DURAMA Auto Duct line III consists of a decoiler, leveling & grooving rollers, hydraulic notching & punching machine, hydraulic cutter and hydraulic folder. The electrical control system uses a computer with a closed-loop servo-system to increase the precision and reliability of the line.
3)Product features:
A: Two power metal feeding frames
B: One leveling & grooving roller machine
C: Four hydraulic notch and die, 60HRC , in 42CrMo raw material .
D: Hydraulic cutter and folding machine
E: Industrial PLC control and specific software, Siemens ,Delta.
Air Conditioning auto duct line, HVAC duct forming machine, HVAC tube forming machine for sheet metal leveling, beading, notching, shearing, folding ventilation auto duct metal sheet forming machine / air duct production line 3, auto duct line 3, duct manufacture machine for HVAC square tube pipe making Auto line III price, HVAC duct making machine, auto duct forming line, machine HVAC duct manufacturing machines air duct making machine,HVAC square duct making machine for sale.
