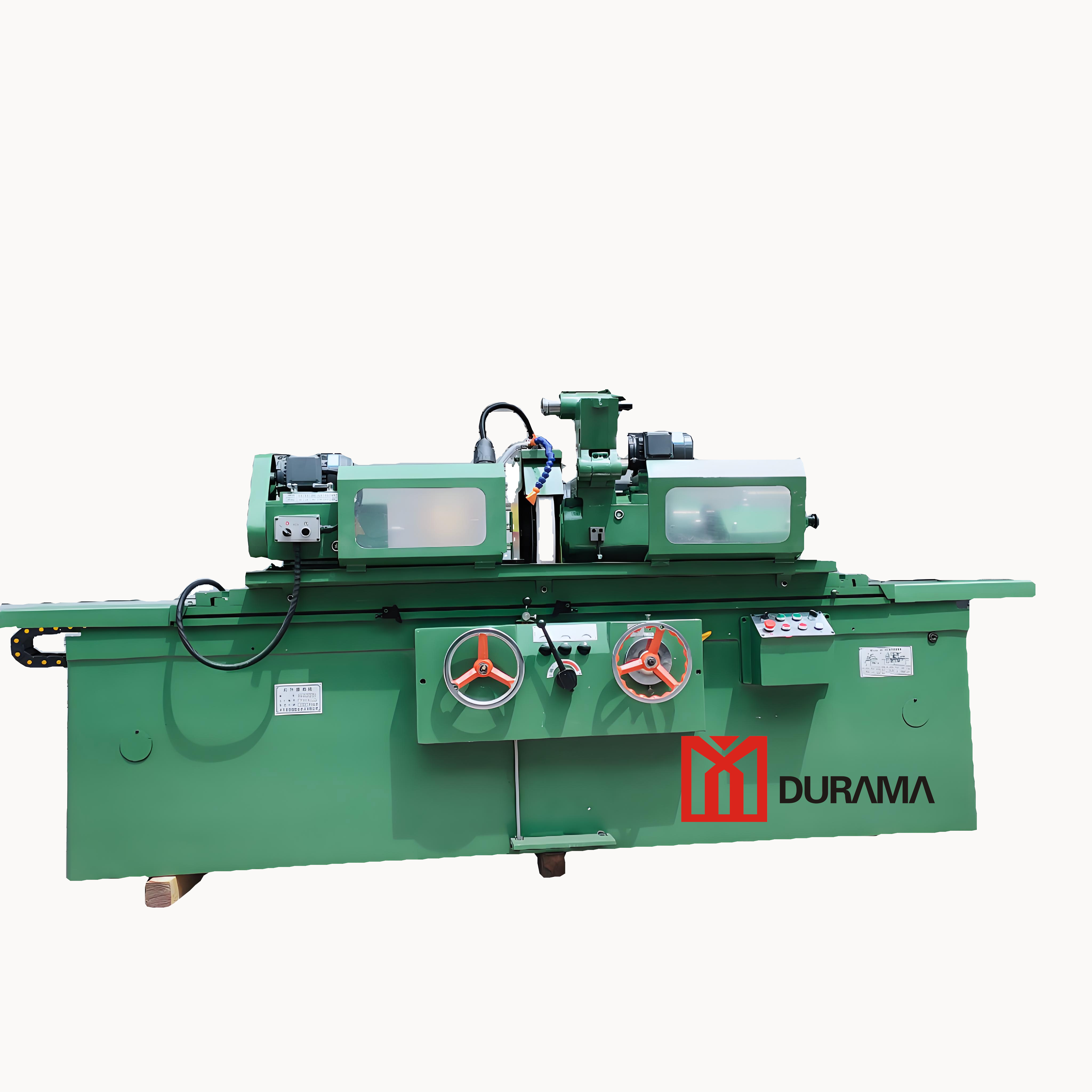

M1432X1000
DURAMA
84601990
1.Main structure:
The external circular grinding machine is mainly composed of the bed, working table, head frame, tail seat, transmission dust suction device and lubrication system and other parts.
2. Application Scope:
External cylindrical grinders are mainly used for precision grinding of end faces, outer circles, and conical surfaces of batches of shaft-type parts, serving as primary equipment in industries such as automotive engines. External cylindrical grinders are suitable for processing shaft-type parts with small batches and high precision requirements in military, aerospace, and general precision machinery workshops. They are also used in the textile industry for processing leather rollers in coarse and fine yarn machines, even winding machines, precision combing machines, and hair styling machines. Additionally, external cylindrical grinders are utilized in the manufacturing industry for producing office communication equipment such as fax machines, copiers, printers, and engraving machines. They are applicable for processing leather rollers in automatic conveying systems in the printing, food, and pharmaceutical industries, as well as plastic processing.
3. Equipment advantages:
The positioning accuracy and repeated positioning accuracy of Dura Ma external circular grinding machine are very high, which can ensure the high precision of processing parts and is suitable for occasions requiring high precision processing.
Technical parameters of internal and external circular grinding machine | unit | M1432/1000 |
Diameter range of grinding | mm | 8~320 |
maximum grinding length | mm | 1000 |
Maximum bore diameter | mm | 160 |
Minimum bore diameter | mm | 35 |
Maximum bore depth | mm | 125 |
Maximum workpiece weight | kg | 150 |
center height | mm | 180 |
Top center distance | mm | 1000 |
Maximum movement of the workbench | mm | 1100 |
Maximum rotary angle of the worktable | ° | Clockwise 3° |
Workstation moving speed range | m/min | 0.1~4 |
Workbench handwheel-rotational movement | mm | 6 |
Head frame spindle speed range | rpm | 28,43,73,110,184,277 |
Head frame spindle hole specification | No.4 Morse | |
Head frame chuck specification | mm | 165 (three-claw) |
Tail frame sleeve conical hole specification | No.4 | |
Tail frame sleeve movement | mm | 30 |
Maximum movement of the grinding wheel stand | mm | 266 |
Rapid movement of grinding wheel stand | mm | 50 |
Sand wheel stand handle-rotational movement | mm | Coarse 2 fine 0.5 |
Sand wheel stand hand wheel-movement | mm | Coarse 0.01 fine 0.0025 |
Sand wheel stand spindle speed | rpm | 1670 |
Grinding wheel specification (D×t×d) | mm | 40×50×203 |
Maximum wheel line speed | M/s | 35 |
Main spindle speed of internal rinding tool | rpm | 1000 |
Cooling pump flow | L/min | 25 |
Grinding wheel motor power | kw | 5.5 |
Head frame motor probability | kw | 1.1 |
aggregate capacity | kw | 9 |
Machine tool size (L × W × H) | mm | 3340×1670×1650 |
Machine weight | kg | 4500 |
1.Main structure:
The external circular grinding machine is mainly composed of the bed, working table, head frame, tail seat, transmission dust suction device and lubrication system and other parts.
2. Application Scope:
External cylindrical grinders are mainly used for precision grinding of end faces, outer circles, and conical surfaces of batches of shaft-type parts, serving as primary equipment in industries such as automotive engines. External cylindrical grinders are suitable for processing shaft-type parts with small batches and high precision requirements in military, aerospace, and general precision machinery workshops. They are also used in the textile industry for processing leather rollers in coarse and fine yarn machines, even winding machines, precision combing machines, and hair styling machines. Additionally, external cylindrical grinders are utilized in the manufacturing industry for producing office communication equipment such as fax machines, copiers, printers, and engraving machines. They are applicable for processing leather rollers in automatic conveying systems in the printing, food, and pharmaceutical industries, as well as plastic processing.
3. Equipment advantages:
The positioning accuracy and repeated positioning accuracy of Dura Ma external circular grinding machine are very high, which can ensure the high precision of processing parts and is suitable for occasions requiring high precision processing.
Technical parameters of internal and external circular grinding machine | unit | M1432/1000 |
Diameter range of grinding | mm | 8~320 |
maximum grinding length | mm | 1000 |
Maximum bore diameter | mm | 160 |
Minimum bore diameter | mm | 35 |
Maximum bore depth | mm | 125 |
Maximum workpiece weight | kg | 150 |
center height | mm | 180 |
Top center distance | mm | 1000 |
Maximum movement of the workbench | mm | 1100 |
Maximum rotary angle of the worktable | ° | Clockwise 3° |
Workstation moving speed range | m/min | 0.1~4 |
Workbench handwheel-rotational movement | mm | 6 |
Head frame spindle speed range | rpm | 28,43,73,110,184,277 |
Head frame spindle hole specification | No.4 Morse | |
Head frame chuck specification | mm | 165 (three-claw) |
Tail frame sleeve conical hole specification | No.4 | |
Tail frame sleeve movement | mm | 30 |
Maximum movement of the grinding wheel stand | mm | 266 |
Rapid movement of grinding wheel stand | mm | 50 |
Sand wheel stand handle-rotational movement | mm | Coarse 2 fine 0.5 |
Sand wheel stand hand wheel-movement | mm | Coarse 0.01 fine 0.0025 |
Sand wheel stand spindle speed | rpm | 1670 |
Grinding wheel specification (D×t×d) | mm | 40×50×203 |
Maximum wheel line speed | M/s | 35 |
Main spindle speed of internal rinding tool | rpm | 1000 |
Cooling pump flow | L/min | 25 |
Grinding wheel motor power | kw | 5.5 |
Head frame motor probability | kw | 1.1 |
aggregate capacity | kw | 9 |
Machine tool size (L × W × H) | mm | 3340×1670×1650 |
Machine weight | kg | 4500 |
