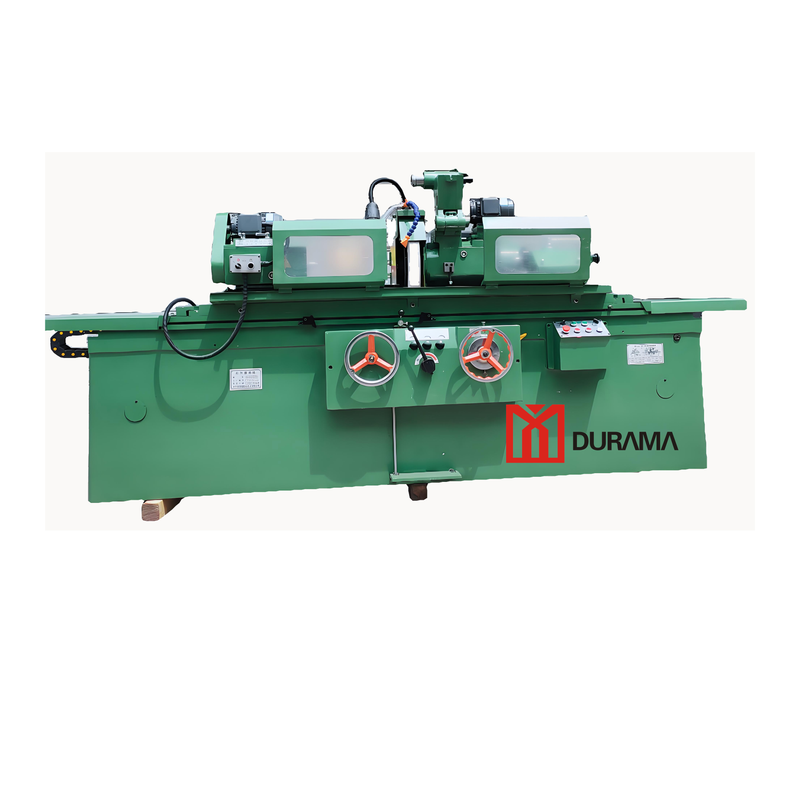

M1432X1500
DURAMA
84601990
1.Main structure:
The external circular grinding machine is mainly composed of the bed, working table, head frame, tail seat, transmission dust suction device and lubrication system.
2. Application Scope:
External cylindrical grinders are mainly used for precision grinding of end faces, outer circles, and conical surfaces of batches of shaft-type parts, serving as primary equipment in industries such as automotive engines. External cylindrical grinders are suitable for processing shaft-type parts with small batches and high precision requirements in military, aerospace, and general precision machinery workshops. They are also used in the textile industry for processing leather rollers in coarse and fine yarn machines, even winding machines, precision combing machines, and hair styling machines. Additionally, external cylindrical grinders are utilized in the manufacturing of office communication equipment, including fax machines, copiers, printers, engraving machines, etc., for processing rubber rollers. They are applicable for processing leather rollers in automatic conveying systems in the printing, food, and pharmaceutical industries, as well as plastic processing.
3. Equipment advantages:
The positioning accuracy and repeated positioning accuracy of Dura Ma external circular grinding machine are very high, which can ensure the high precision of processing parts, suitable for the occasions that require high precision processing. 4. Equipment parameters:
model | unit | M1432/1500 |
Diameter range for grinding | mm | 8~320 |
maximum grinding length | mm | 1500 |
Maximum bore diameter | mm | 160 |
Minimum bore diameter | mm | 35 |
Maximum bore depth | mm | 125 |
Maximum workpiece weight | kg | 150 |
center height | mm | 180 |
Top center distance | mm | 1500 |
Maximum movement of the workbench | mm | 1600 |
Maximum rotary angle of the worktable | ° | 7° counterclockwise |
Workstation moving speed range | m/min | 0.1~4 |
Workbench handwheel-rotational flow | mm | 6 |
Head frame spindle speed range | rpm | 28,43,73,110,184,277 |
ead frame spindle hole specification | No.4 Morse | |
Head frame chuck specification | mm | 165 (three-clawed) |
Tail frame sleeve conical hole specification | No.4 | |
Tail frame sleeve movement | mm | 30 |
Maximum movement of the grinding wheel frame | mm | 266 |
Rapid movement of the grinding wheel frame | mm | 50 |
Sand wheel stand handle-rotational movement | mm | Coarse 2 fine 0.5 |
Sand wheel stand handle-movement | mm | Coarse 0.01 fine 0.0025 |
Sand wheel stand spindle speed | rpm | 1670 |
Grinding wheel specification (D×t×d) | mm | 400×52×203 (205 inner hole) |
350*127*40 (127 inner holes) | ||
Maximum wheel line speed | M/s | 35 |
Main shaft speed of internal grinding tool | rpm | 1500 |
Cooling pump flow | L/min | 25 |
Grinding wheel motor power | kw | 5.5 |
Head frame motor probability | kw | 1.1 |
aggregate capacity | kw | 9 |
Machine tool size (length × width × height) | mm | 4213×1670×1650 |
Machine weight | kg | 4000 |
