| Quantity: | |
|---|---|
M7140
DURAMA
84601990

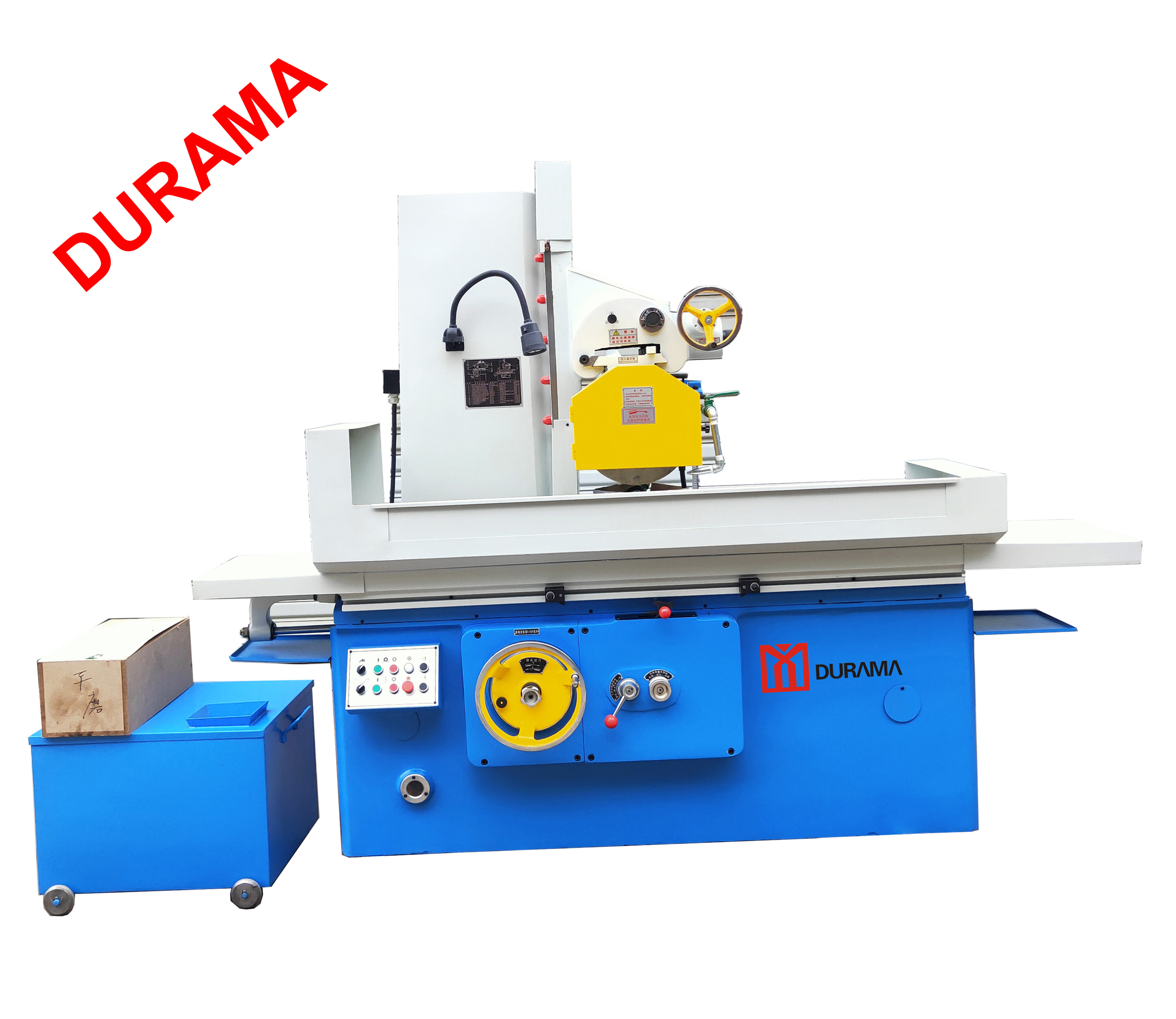

DURAMA surface grinding machines are commonly used in manufacturing and metalworking industries. The surface grinding machines play a crucial role in achieving precision and smoothness on the surfaces of various materials, such as metal, ceramics, plastics, and so on.
The main performance characteristics:
The screw rod of the grinding machine is made of special alloy steel through strict processing and heat treatment technology.
Grinding head is with vertical rapid lifting, improve production efficiency.
The grinding head lateral movement is driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:
| Description | Units | M7140x1000 | M7140x1600 | M7140x2000 | |
| Size of work table(L x W x H) | mm | 1000x400 | 1600x400 | 2000x400 | |
| Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 | |
| Max. Cross movement of grinding herd | mm | 450 | 450 | 450 | |
| Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1.00 | 1.00 | 1.00 | |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1440 | 1440 | 1440 | |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
| Total power of motor | KW | 9 | 10 | 12 | |
| Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | |
| Power of oil pump motor | KW | 3 | 4 | 5.5 | |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | |
| Net weight | Kg | 4000 | 4100 | 4200 | |
Surface Grinding Machine, grinding machine, grinder machine, surface grinder, automatic grinding machine, hydraulic grinder, milling machine
