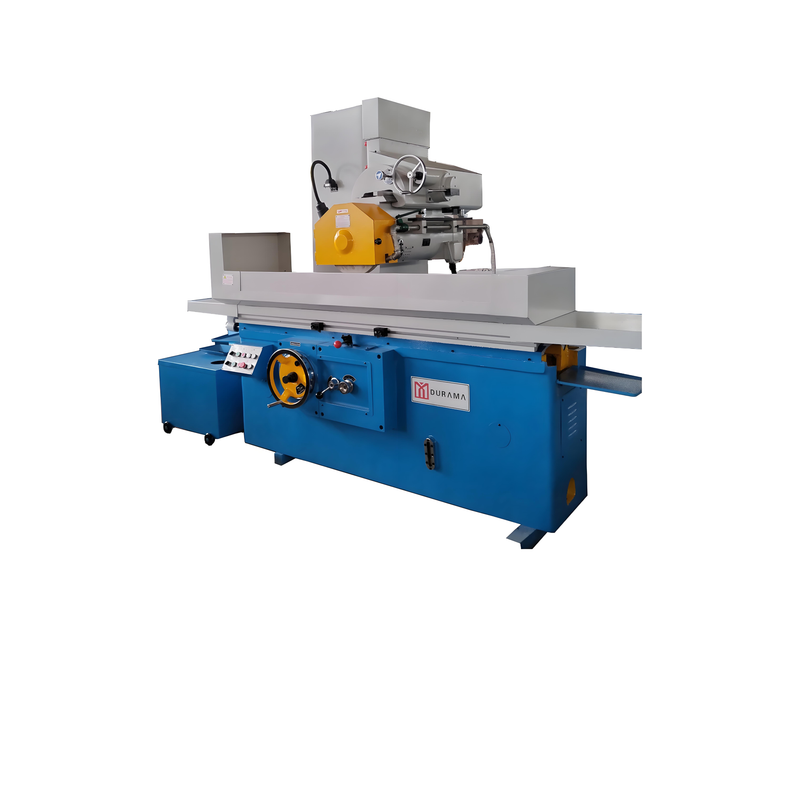

M7130
DURAMA
84601990
1. Working Principle:

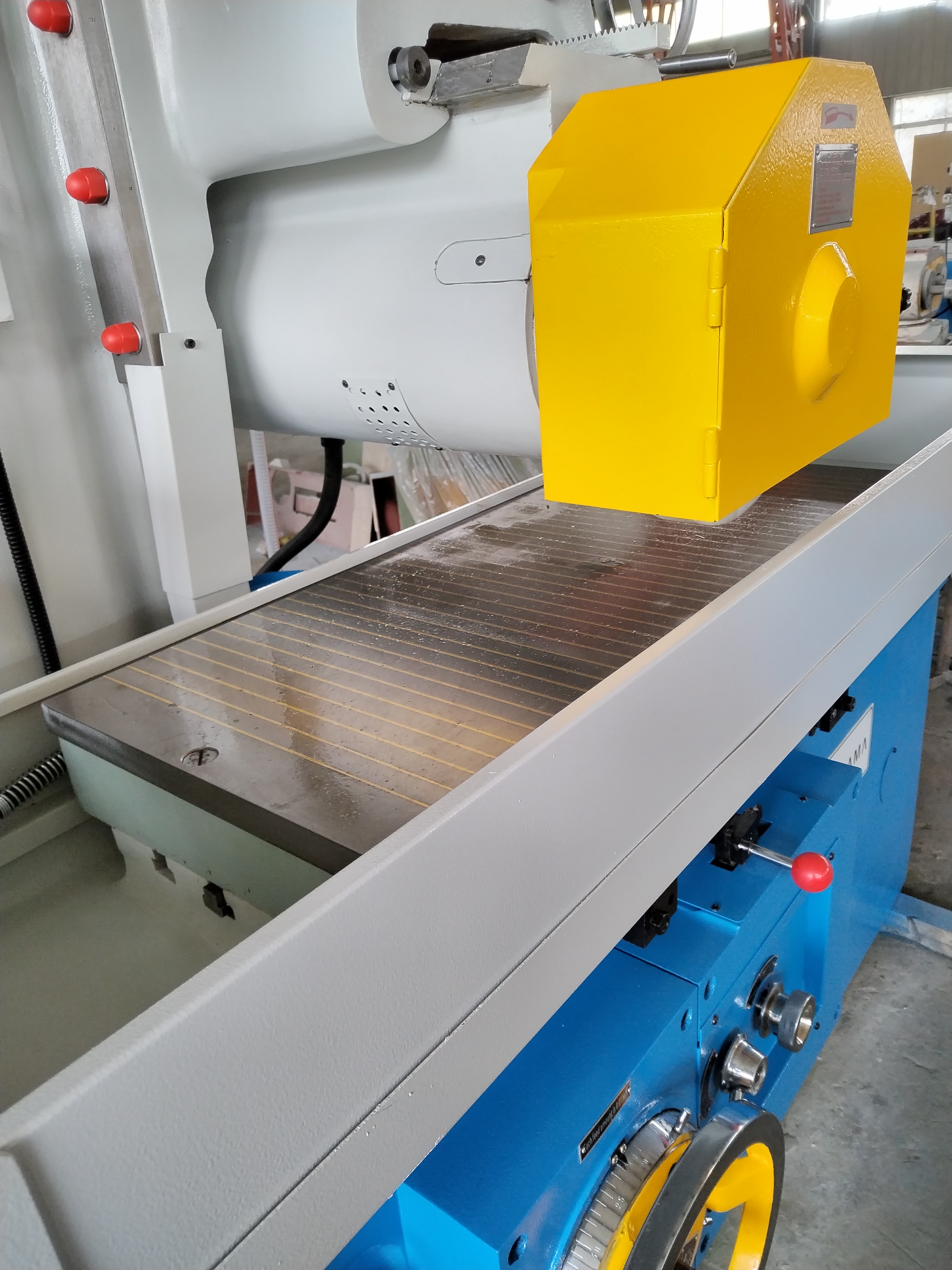

A flatbed grinding machine is primarily composed of components such as the machine base, worktable, spindle, grinding head, guides, feed system, and lubrication system. The machine base serves as the supporting structure of the entire machine, while the worktable is used for mounting the workpiece. The spindle and grinding head are key components that enable the grinding operation. A flatbed grinding machine mainly uses the rotation of a grinding wheel to grind workpieces. During the grinding process, the grinding wheel rotates at high speed, continuously grinding the surface of the workpiece through contact with it, thereby achieving the required precision and surface quality.
2. Application Scope:
Flatbed grinding machines are widely used in the metalworking industry suitable for grinding various metal materials such as aluminum alloys steel stainless steel copper alloys etc. Flatbed grinding machines are extensively applied in mold manufacturing and processing mechanical manufacturing and part processing aerospace automotive components optical lenses watchmaking and electronic components fields.
3. Equipment Advantages:
The positioning accuracy and repeatability of the Durama flatbed grinding machine are both very high, ensuring high precision in part processing and making it suitable for applications requiring high-precision machining. The Durama flatbed grinding machine can process multiple workpiece surfaces in a single setup, typically requiring only the inspection of the first piece, eliminating many of the procedures typically associated with conventional machine tools, thus enhancing production efficiency. The processing procedure of the Durama flatbed grinding machine can be automatically completed according to the input program, allowing the operator to perform only initial setup, part loading and unloading, and tool changing, significantly reducing the physical labor intensity of the operator.
4. Equipment parameters:
model | M7130 | |||
staging | Table size (width * length) | mm | 300*1000 | |
Grinding size (width * length) | mm | 300*1000 | ||
Work table longitudinal travel | mm | 1100 | ||
Workstation speed (infinite) | m/min | 3-27 | ||
Workbench T-type groove (number of grooves * width) | mm | 3*18 | ||
Workbench load | kg | 468 | ||
bistrique | The distance between the center of the grinding wheel shaft and the working table | mm | 575 | |
The intermittent feed per stroke of the grinding head | mm/visit | 3-60 | ||
Speed of the grinding wheel shaft | R/min | 1440 | ||
ertical feed handwheel scale value | mm | 0.01 | ||
Handwheel rotation feed rate | vertical feed | mm | 8 | |
crossfeed | ||||
Grinding wheel size (outer diameter * width * inner diameter) | mm | Φ350*40*Φ127 | ||
power of motor | Motor total power | kw | 8 | |
Motor power of the grinding head | kw | 4.5 | ||
Work accuracy | Process the parallelism of the surface base plane | mm | 300:0. 01 | |
surface roughness | um | Ra0.63 | ||
Machine weight | net weight | kg | 3500 | |
outline dimension | Length * width * height | mm | 2800*1673*2035 | |
