| Quantity: | |
|---|---|
T-12
DURAMA
846221
Product Description:

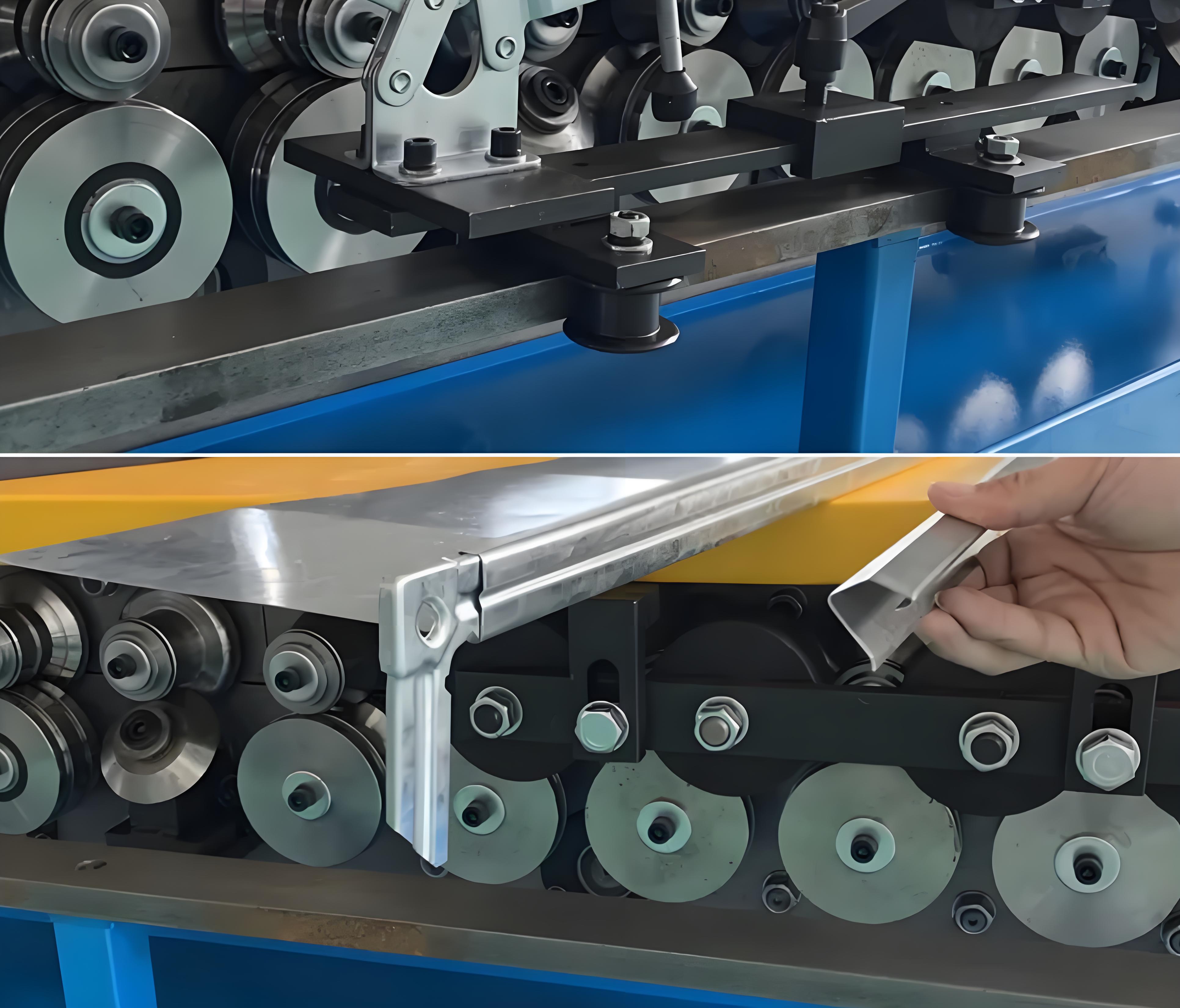

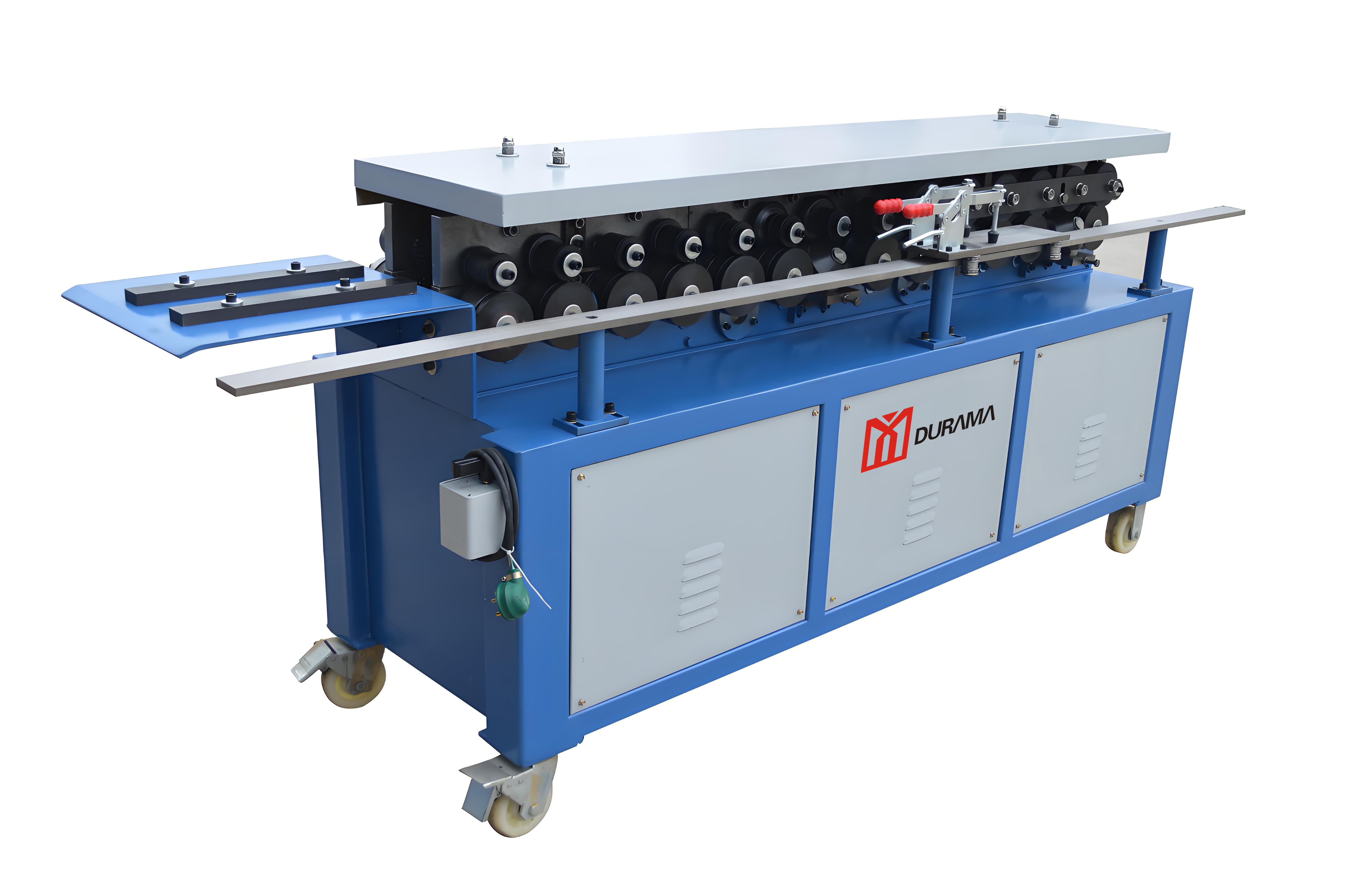

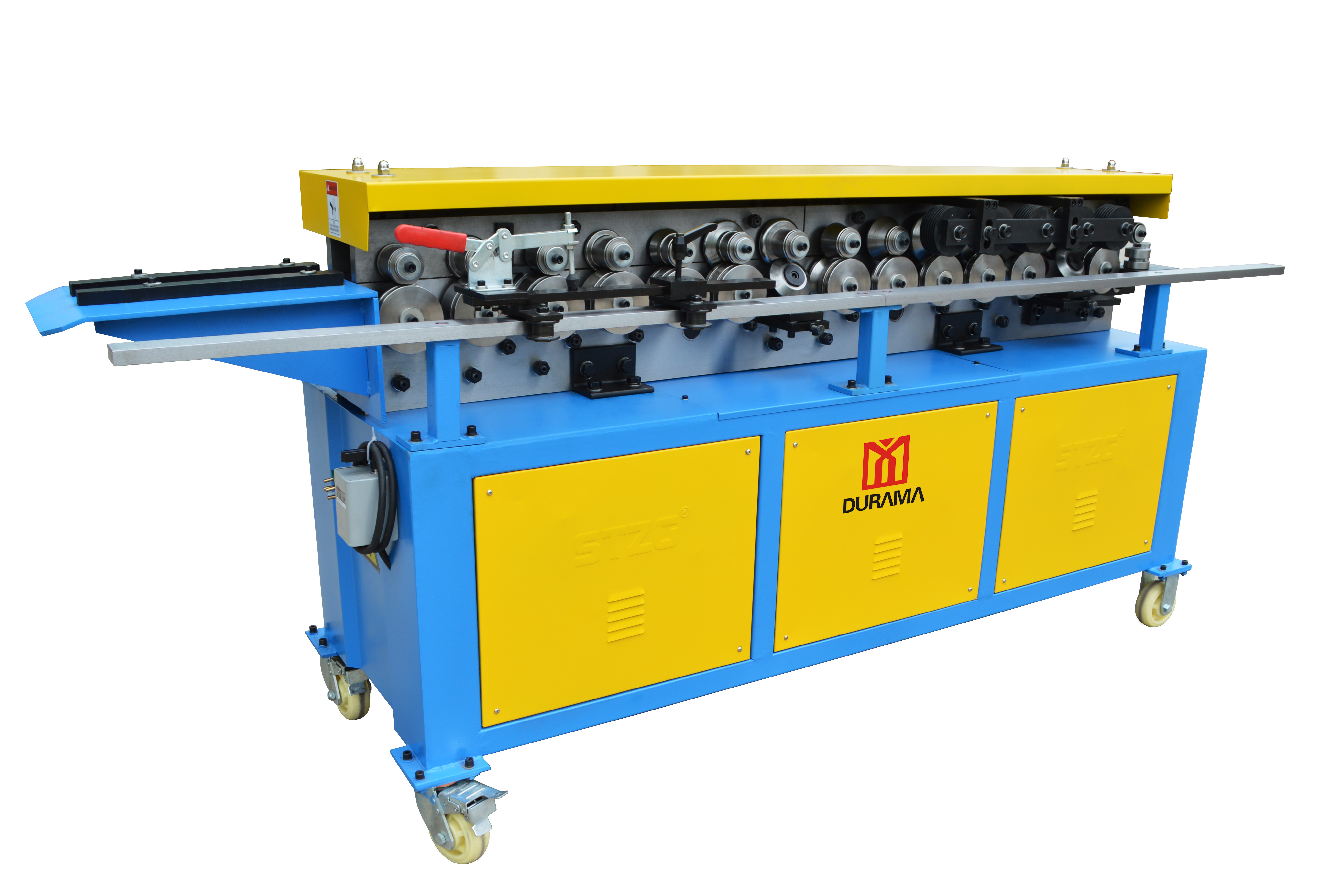

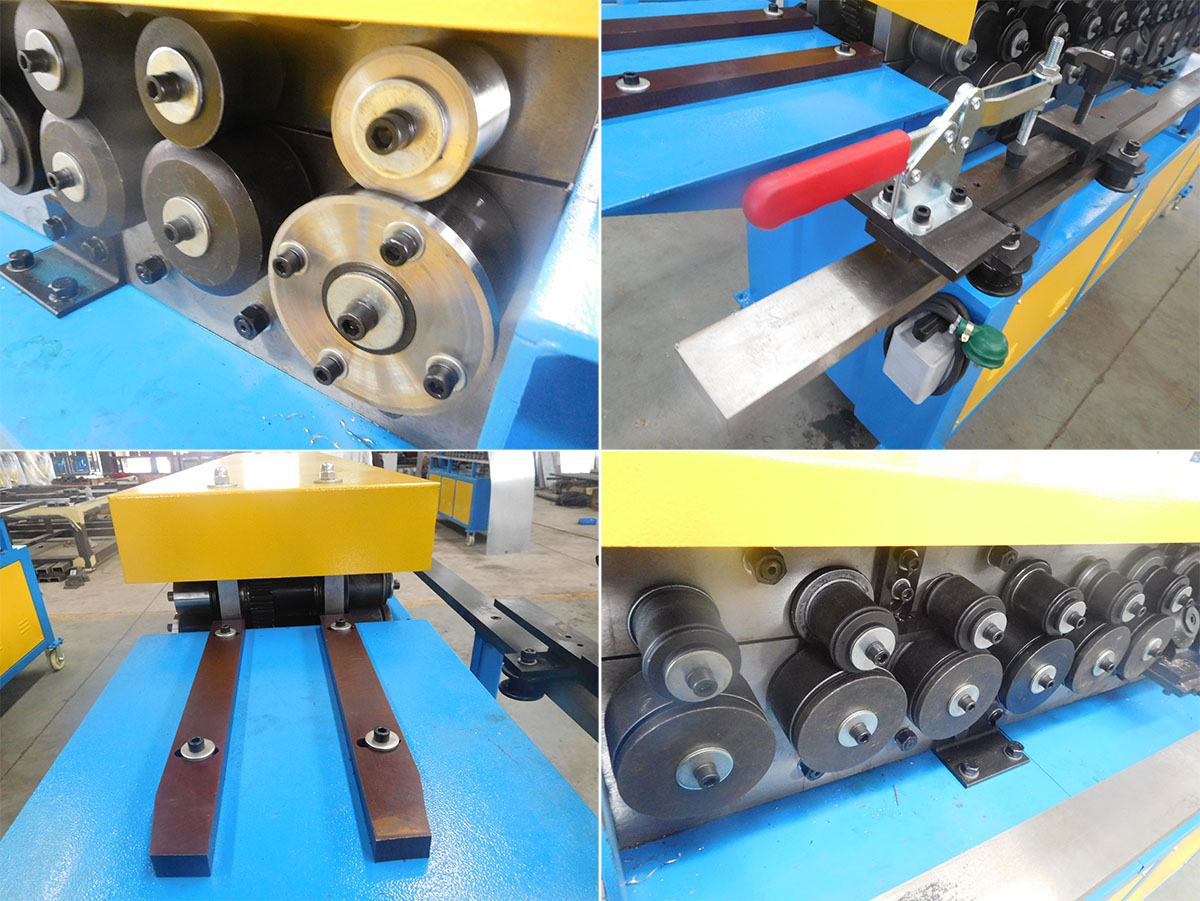

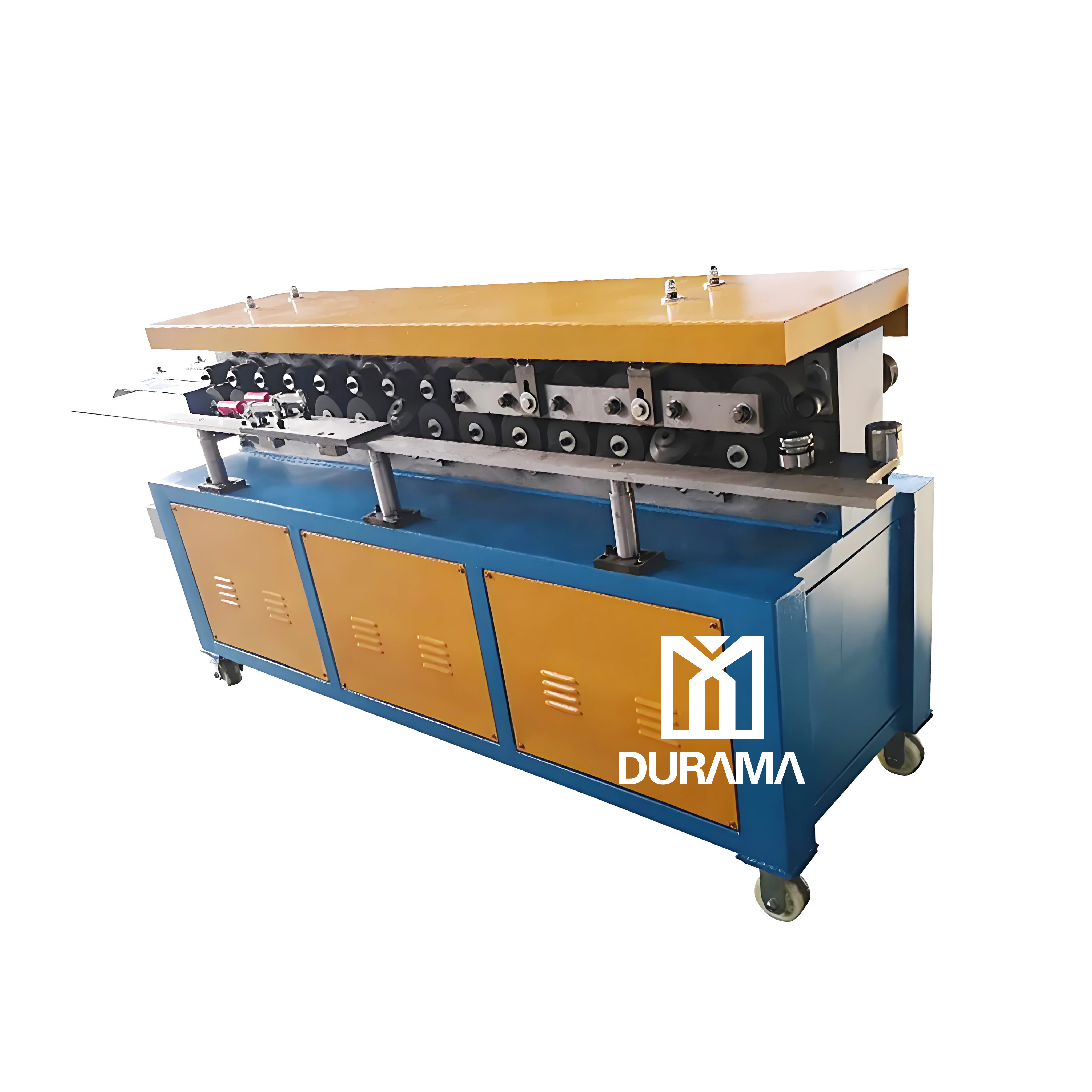

DURAMA TDF flange forming machine has two sides, one side is to make flange shape, another side is to make clip shape. DURAMA can also customize both sides to make requested flange shape. Flange height usually is 35±0.5mm, but 20,25,30mm is also available. This machine is easily operated on site and in factory. Standard machine T-12 can make max 1.2mm thickness galvanized sheet and max 0.7mm stainless steel, T-15 can make max 1.5mm thickness galvanized sheet and max 1.0mm stainless steel. Usually it's enough for air duct flange making, but if you have any other requirement, our professional engineers can design for you according to your needs.
Main Technical Parameters:
Model | Thickness (mm) | Shape | Flange height | Weight (kg) | Power (kw) | Dimension (mm) |
T-12 | 0.5~1.2 |
| 35±0.5 mm | 840 | 3 | 2550*700*1100 |
T-15 | 0.8~1.5 |
Air Conditioning auto duct line, HVAC duct forming machine, HVAC tube forming machine for sheet metal leveling, beading, notching, shearing, folding ventilation auto duct metal sheet forming machine / air duct production line 3, auto duct line 3, duct manufacture machine for HVAC square tube pipe making Auto line III price, HVAC duct making machine, auto duct forming line, machine HVAC duct manufacturing machines air duct making machine,HVAC square duct making machine for sale.
