You are here: Home » Products » Hydraulic Press Brake » DRP-12532 Hydraulic Press Brake
Share to:

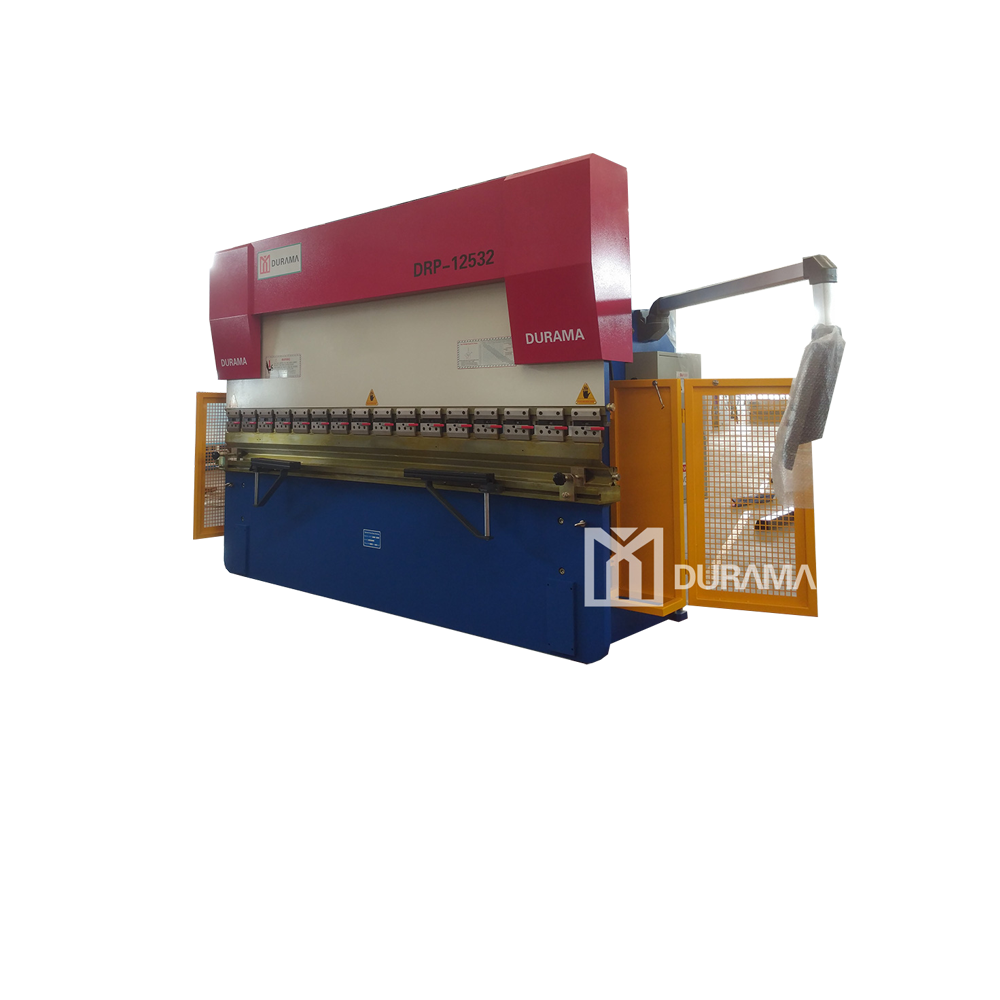

DRP-12532 Hydraulic Press Brake

DURAMA hydraulic press brake, folding machine DRP-12532, is equipped with ESTUN E21 NC controller, 125Ton power pressure, maximum width 3200mm capacity.
Availability:
Quantity:
  • DRP-12532
  • DURAMA
  • 84622990

DURAMA hydraulic press brake DRP-12532 (WC67Y-125/3200), is equipped with ESTUN E21 NC controller, it can control backgauge X, achieving precise positioning efficiently; it can also controle cylinder stroke Y.

01 DRP-12532

Hydraulic top-drive, steadiness and reliability;

Electrical hydraulic synchronization, high precision;

Deflection compensation unit installed on the top die;

Machine fitted with digital readout.

Emergency buttons for back and side control cabinet, also food pedal;

Standard top tool & bottom die supplied with the machine;

Special tools are optional, will be designed according to your needs.

1

Normal pressure

1250

KN

2

Table length

 3200

mm

3

Column space

 2650


4

Throat depth

320


5

Slider stroke

140


6

Slider stroke regulation amount

100


7

Max open height between table and slider

385


8

worktable height above the ground

800


9

Max work pressure of hydraulic system

25

Mpa
