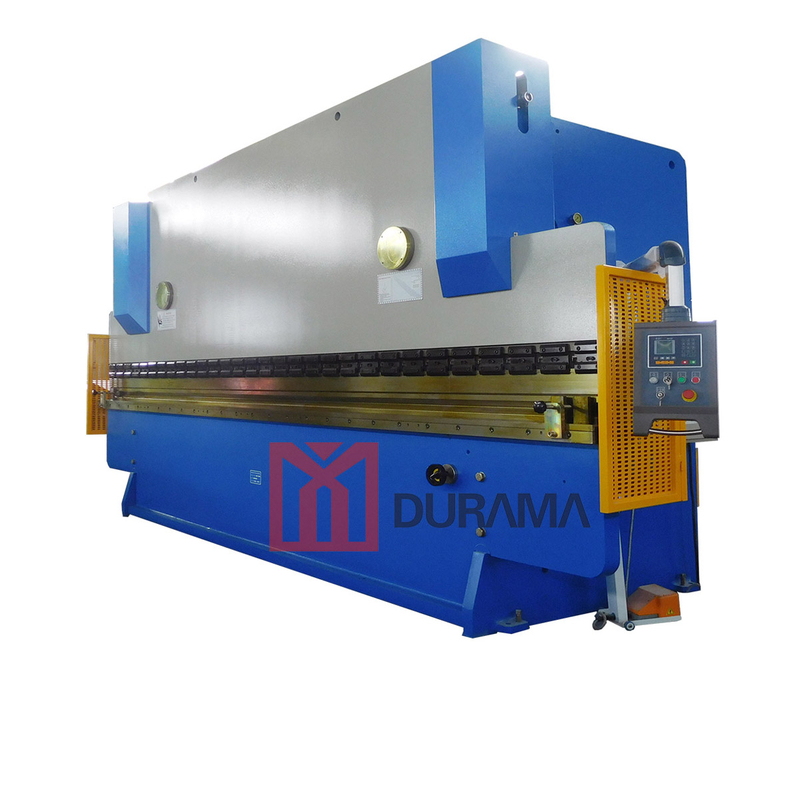

DRP-20060 Hydraulic Press Brake with ESTUN E21 NC

DURAMA hydraulic press brake, folding machine DRP-12532, is equipped with ESTUN E21 NC controller, 125Ton power pressure, maximum width 3200mm capacity.
Availability:
Quantity:
  • DRP-20060
  • DURAMA
  • 84622990

DURAMA DRP-20060 Hydraulic Folding Machine with ESTUN E21 NC, hydraulic press brake DRP-20060 (WC67Y-200/6000), is equipped with ESTUN E21 NC controller, it can control backgauge X, achieving precise positioning efficiently; it can also controle cylinder stroke Y.


Hydraulic top-drive, steadiness and reliability;

Electrical hydraulic synchronization, high precision;

Deflection compensation unit installed on the top die;

Machine fitted with digital readout.

Emergency buttons for back and side control cabinet, also food pedal;

Standard top tool & bottom die supplied with the machine;

Special tools are optional, will be designed according to your needs.

1

Normal pressure

2000

KN

2

Table length

 6000

mm

3

Column space

4200


4

Throat depth

320


5

Slider stroke

200


6

Slider stroke regulation amount

150


7

Max open height between table and slider

560


8

worktable height above the ground

890


9

Max work pressure of hydraulic system

22

Mpa
