| Quantity: | |
|---|---|
DRSD-1200
DURAMA
7303009000

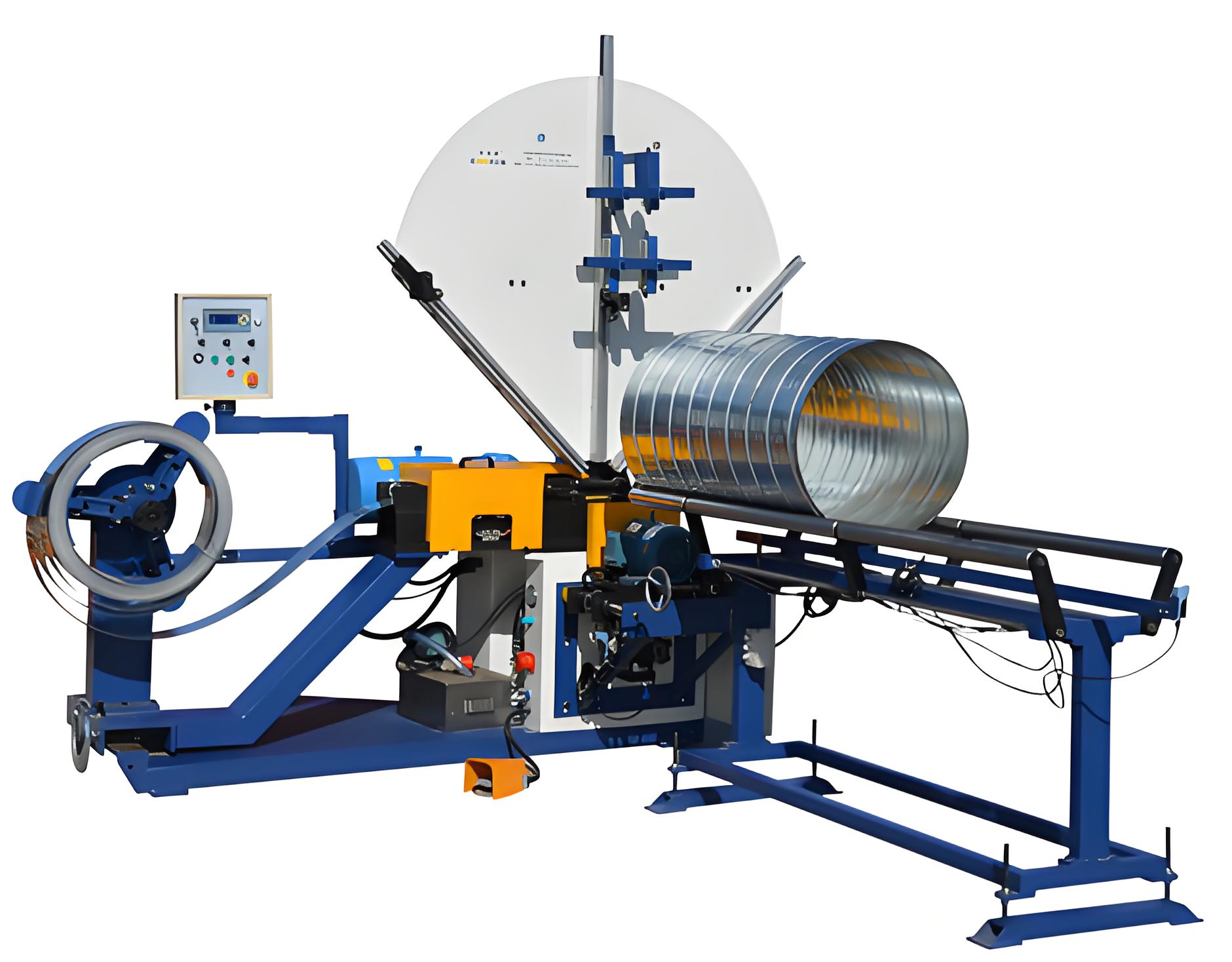

The DRSD-1200 spiral duct machine is a specialized device used for manufacturing spiral ducts and is widely applied in HVAC (heating, ventilation, and air conditioning) systems. Below is an introduction to the main functions of the spiral duct machine:
Forming Function：
Spiral Forming: Metal sheets (such as galvanized steel sheets and stainless steel sheets) are curled and formed into spiral ducts.
Precise Control: A precise control system ensures that the diameter and shape of the ducts meet design requirements.
Edge Biting Function：
Edge Biting: The edges are bitten to ensure the airtightness and strength of the ducts, preventing air leakage.
Automatic Biting: The automatic biting process improves production efficiency and consistency.
Cutting Function：
Fixed-Length Cutting: Spiral ducts are cut to specific lengths as required, facilitating installation and use.
Automatic Cutting: Equipped with an automatic cutting device to improve cutting accuracy and efficiency.
Sheet Handling：
Automatic Feeding: Metal coils are automatically fed into the machine, reducing manual operation.
Sheet Unwinding: The coils are unwound and fed into the forming system to ensure continuous production.
Control System：
Automated Control: An advanced PLC control system is used to achieve automated operation and monitoring.
Parameter Setting: The duct diameter, length, and other parameters can be set according to different requirements, allowing flexible production adjustments.
Efficient Production
Continuous Production:
Continuous production is achieved to improve production efficiency.
High-Quality Output: The quality of the produced ducts is stable and meets industry standards.
Application Fields：
Construction Industry: Used for ventilation systems in commercial and residential buildings.
Industrial Sector: Used for ventilation and exhaust systems in factories, warehouses, and other large facilities.
Air Conditioning Systems: Used for duct manufacturing in central air conditioning systems.
Advantages：
1、Efficient Production: High degree of automation and high production efficiency.
2、Stable Quality: The produced spiral ducts have good airtightness and high strength.
3、Material Savings: Optimized material usage reduces waste.
Model | DRSD-1200 |
Min. Diameter | 85mm |
Max. Thickness | 1 mm mild steel |
Material Yield Limit | 245KN |
Feeding speed | 0-32 |
Power motor | 4KW |
Weight | 1260 |
Dimensions | 2650X 1920 X 2100mm |
