SA12-HB
DURAMA
8462291000
1.cope of Application:

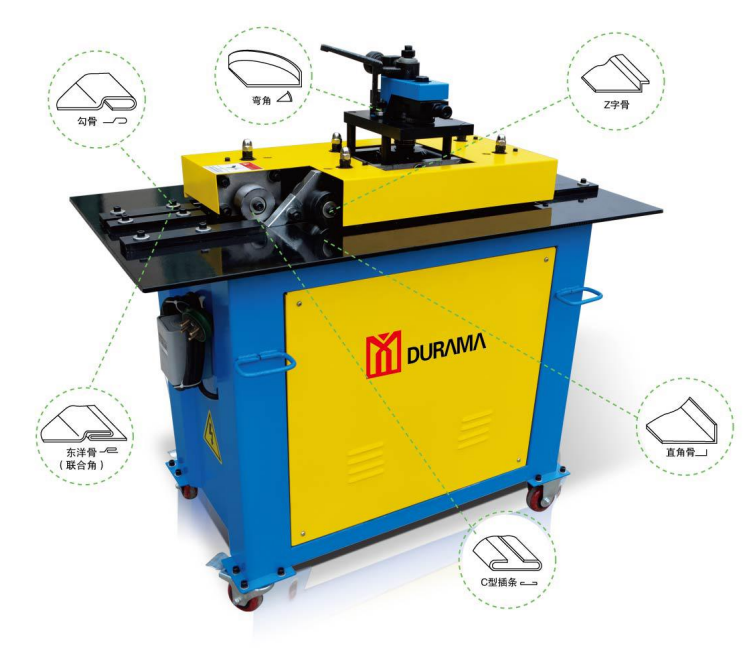

Bite Machine, also known as Hoist Bone Machine, Bite Seam Machine, Bite Edge Machine, Air Pipe Bite Machine, Air Pipe Hoist Bone Machine, Vertical Bite Machine. It is a multi-functional machine mainly used for bite processing of metal plate connections and round air pipe closure connections.
2.Equipment Advantages:
The bite machine is an essential device in the duct manufacturing industry capable of processing various bone types to meet the needs of panel assembly standard models can process galvanized sheets ranging from 0.5 to 1.2 mm. The Durama bite machine not only offers aesthetically pleasing and stable performance but is also equipped with a reducer which increases output torque ensuring quieter and smoother operation. Additionally the Durama bite machine uses high-strength rolls made of GCr15 material extending the service life by more than 5 times compared to conventional materials significantly enhancing work efficiency.

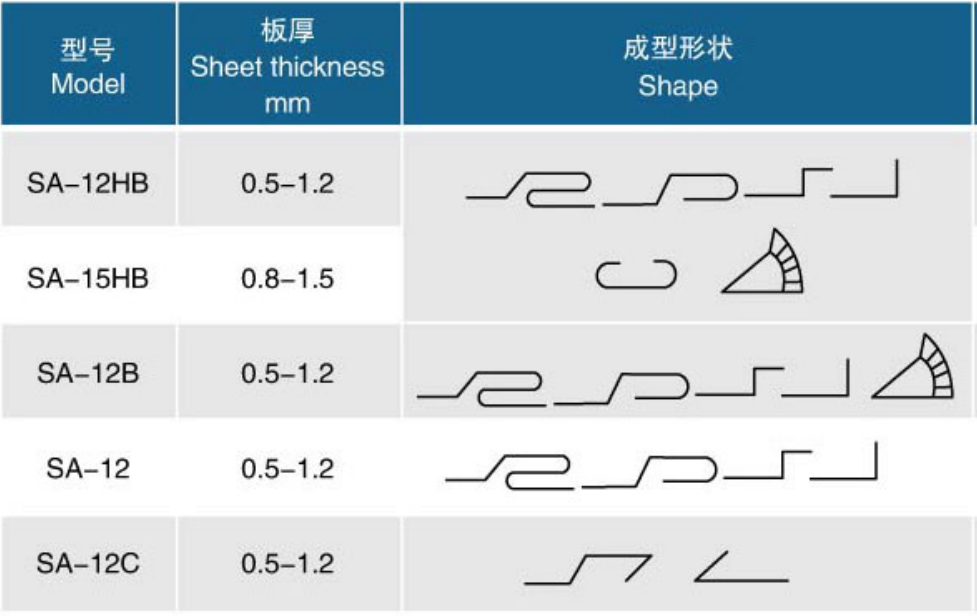

3. Equipment parameters:
Model | Sheet thickness mm | Power KW | Weight KG | Dimensions L*W*H |
SA-12HB | 0.5-1.2 | 1.5 | 220 | 1050X570X1020mm |
SA-15HB | 0.8-1.5 | 2.2 | 280 | 1150X600X1100mm |
SA-12B | 0.5-1.2 | 1.5 | 215 | 1050X570X1020mm |
SA-12 | 0.5-1.2 | 1.5 | 200 | 1050X570X870mm |
SA-12C | 0.5-1.2 | 1.5 | 200 | 1050X570X870mm |
